STi5512 - SET TOP BOX BACKEND DECODER

Datasheet Summary

Features

  • to improve the video display and add background and foreground graphics and pictures. Features include:.
  • Five display planes - background color, still picture, decompressed video, on-screen display and sub-picture,.
  • Letterbox filtering,.
  • Anti-flutter and anti-flicker filters,.
  • 2- to 8-bits per pixel on-screen display with 24-bit color with anti-aliasing,.
  • Hardware cursor option,.
  • Display memory expandable to 64 Mbits of SDRAM,.
  • 2D BL.

📥 Download Datasheet

Datasheet preview – STi5512

Datasheet Details

Part number STi5512
Manufacturer STMicroelectronics
File Size 181.10 KB
Description SET TOP BOX BACKEND DECODER
Datasheet download datasheet STi5512 Datasheet
Additional preview pages of the STi5512 datasheet.

📁 Similar Datasheet

  • STI5512 - HIGH RELIABILITY FOR LOW COST WIDE FREQUENCY RANGE (ETC)
  • STI5514 - Set-top box decoder with hard disk drive capability for digital TV / digital set-top box or cable box (ST Microelectronics)
  • STI5516 - STI5516 (ETC)
  • STI5517 - Low Cost Set-Top Box Decoder (ST Microelectronics)
  • STI5518 - Single-Chip Set-Top Box Decoder with Hard Disk Drive and MP3 (ST Microelectronics)
  • STI5500 - Set Top Box / DVD Backend Decoder (ST Microelectronics)
  • STI50DE100 - Hybrid Emitter Switched Bipolar Transistor ESBT (ST Microelectronics)
  • STI5100 - Low-cost interactive set-top box decoder (ST Microelectronics)
  • STI57N65M5 - N-Channel MOSFET (INCHANGE)
  • STI11NM60ND - N-Channel MOSFET (INCHANGE)
Other Datasheets by STMicroelectronics
  • STI55NF03L - N-channel Power MOSFET
  • STI5105 - High-performance advanced SD decoder
  • STI5107 - Low-cost interactive set-top box decoder
  • STi5119 - Low-cost interactive set-top box decoder
  • STI5200 - Low-cost SDTV set-top box decoder
  • STI5202 - Low-cost set-top box decoder
  • STI5300 - High-performance set-top box decoder
  • STi5301 - High-performance set-top box decoder

Full PDF Text Transcription

Click to expand full text

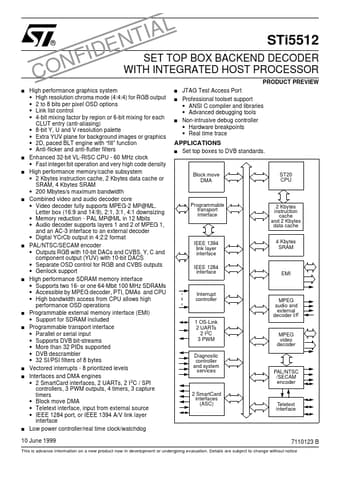

CONFIDENTIAL® STi5512 SET TOP BOX BACKEND DECODER WITH INTEGRATED HOST PROCESSOR PRODUCT PREVIEW s High performance graphics system • High resolution chroma mode (4:4:4) for RGB output • 2 to 8 bits per pixel OSD options • Link list control • 4-bit mixing factor by region or 6-bit mixing for each CLUT entry (anti-aliasing) • 8-bit Y, U and V resolution palette • Extra YUV plane for background images or graphics • 2D, paced BLT engine with “fill” function • Anti-flicker and anti-flutter filters s Enhanced 32-bit VL-RISC CPU - 60 MHz clock • Fast integer/bit operation and very high code density s High performance memory/cache subsystem • 2 Kbytes instruction cache, 2 Kbytes data cache or SRAM, 4 Kbytes SRAM • 200 Mbytes/s maximum bandwidth s Combined video and audio decoder core • Video dec
