TDA7497SA Datasheet, Amplifier, STMicroelectronics

TDA7497SA Features

• Amplifier 8+8W (RL = 8Ω) + 15W ( RL = 4Ω) OUTPUT POWER @THD = 10%, Vcc = 25V INDEPENDENT MUTE FOR CENTER CHANNEL AND MAIN CHANNELS NO TURN-ON TURN-OFF POP NOISE NO BOUCHEROT CELL SINGLE SUPPLY RA

PDF File Details

Part number:

TDA7497SA

Manufacturer:

STMicroelectronics ↗

File Size:

667.93kb

Download:

📄 Datasheet

Description:

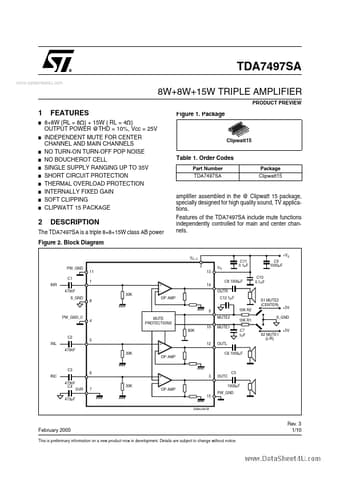

Triple amplifier. The TDA7497SA is a triple 8+8+15W class AB power Figure 2. Block Diagram VS_C PW_GND C1 INR 470nF S_GND 8 2 11 1 13 VS +VS C11 0.1

TDA7497SA Application

• Applications Features of the TDA7497SA include mute functions independently controlled for main and center channels. 2 DESCRIPTION The TDA7497SA
