TDA7490LSA datasheet, amplifier equivalent, STMicroelectronics

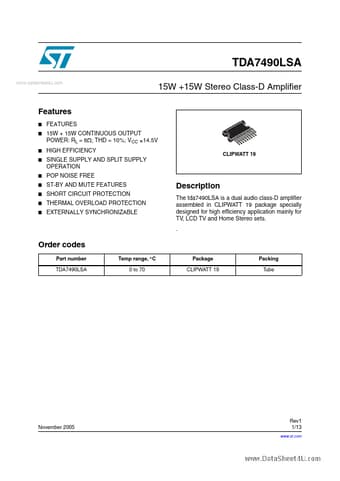

TDA7490LSA Features and benefits

*
*
*
*
*
*
*
*
* FEATURES 15W + 15W CONTINUOUS OUTPUT POWER: RL = 6Ω; THD = 10%; VCC ±14.5V HIGH EFFICIENCY SINGLE SUPPLY AND SPLIT .

TDA7490LSA Description

The tda7490LSA is a dual audio class-D amplifier assembled in CLIPWATT 19 package specially designed for high efficiency application mainly for TV, LCD TV and Home Stereo sets. . Order codes Part number TDA7490LSA Temp range, °C 0 to 70 Package CLIP.

Image gallery
