TDA7491P Datasheet - STMicroelectronics

2 x 10-watt dual BTL class-D audio amplifier

TDA7491P Features

* 10 W + 10 W continuous output power: RL = 6 Ω, THD = 10% at VCC = 11 V 9.5 W + 9.5 W continuous output power: RL = 8 Ω, THD = 10% at VCC = 12 V Wide range single supply operation (5 V - 18 V) High efficiency (η = 90%) Four sele

TDA7491P General Description

The TDA7491P is a dual BTL class-D audio amplifier with single power supply designed for LCD TVs and monitors. Thanks to the high efficiency and exposed-pad-down (EPD) package no separate heatsink is required. Furthermore, the filterless operation allows a reduction in the external component count. .

TDA7491P Datasheet (1.21 MB)

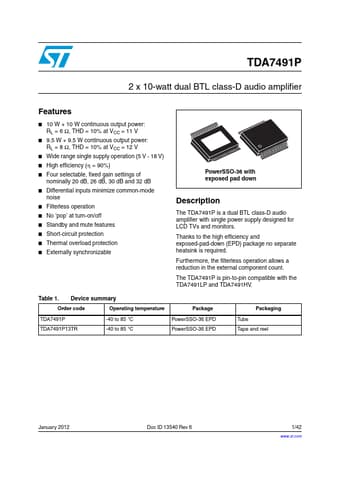

Preview of TDA7491P PDF

Datasheet Details

Part number:

TDA7491P

Manufacturer:

STMicroelectronics ↗

File Size:

1.21 MB

Description:

2 x 10-watt dual btl class-d audio amplifier.
