TDA7491MV Datasheet - STMicroelectronics

25W mono BTL class-D audio amplifier

TDA7491MV Features

* 20 W continuous output power: RL = 8 , THD = 10% at VCC = 18 V

* 25 W continuous output power: RL = 6 , THD = 10% at VCC = 16 V

* Wide range single supply operation (5 V - 18 V)

* High efficiency ( = 90%)

* Four selectable, fixed gain settings of nominally 20 dB, 26 dB, 30 d

TDA7491MV General Description

The TDA7491MV is a mono BTL class-D audio amplifier with single power supply designed for LCD TVs and monitors. Thanks to the high efficiency and an exposed-pad-down (EPD) package no heatsink is required. Furthermore, the filterless operation allows a reduction in the external component count. The T.

TDA7491MV Datasheet (429.26 KB)

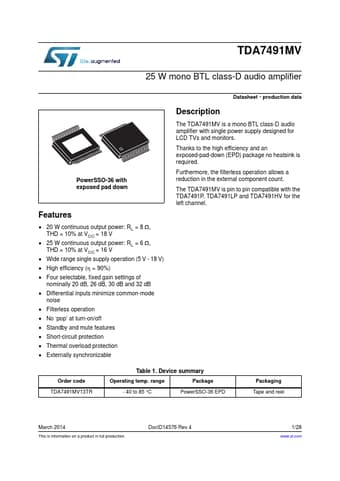

Preview of TDA7491MV PDF

Datasheet Details

Part number:

TDA7491MV

Manufacturer:

STMicroelectronics ↗

File Size:

429.26 KB

Description:

25w mono btl class-d audio amplifier.
