TDA7498MV Datasheet, Amplifiers, STMicroelectronics

TDA7498MV Features

  • Amplifiers
  • 100 W output power at THD = 10% with RL = 6 Ω and VCC = 36 V
  • 80 W output power at THD = 10% with RL = 8 Ω and VCC = 34 V
  • Wide-range single-supply operation

PDF File Details

Part number:

TDA7498MV

Manufacturer:

STMicroelectronics ↗

File Size:

639.55kb

Download:

📄 Datasheet

Description:

Class-d audio power amplifiers. The TDA7498MV is a mono BTL class-D audio amplifier with single power supply designed for home systems and active speaker application

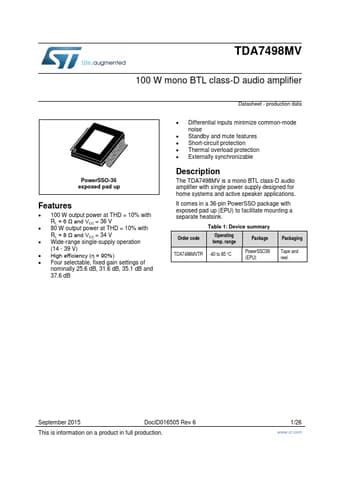

Datasheet Preview: TDA7498MV 📥 Download PDF (639.55kb)
Page 2 of TDA7498MV Page 3 of TDA7498MV

TDA7498MV Application

  • Applications It comes in a 36-pin PowerSSO package with exposed pad up (EPU) to facilitate mounting a separate heatsink. Table 1: Device summary

TAGS

TDA7498MV
Class-D
Audio
Power
Amplifiers
STMicroelectronics
