TDA7701

BATTERY OPERATED FULLY INTEGRATED FM TUNER

TDA7701 Features

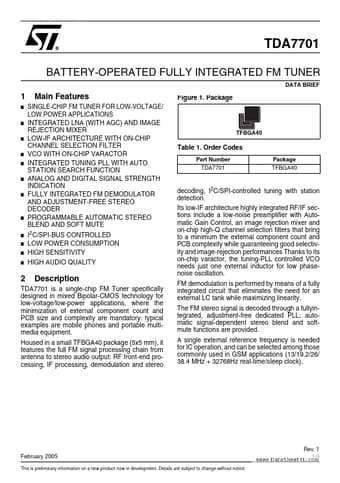

* SINGLE-CHIP FM TUNER FOR LOW-VOLTAGE/ LOW POWER APPLICATIONS INTEGRATED LNA (WITH AGC) AND IMAGE REJECTION MIXER LOW-IF ARCHITECTURE WITH ON-CHIP CHANNEL SELECTION FILTER VCO WITH ON-CHIP VARACTOR INTEGRATED TUNING PLL WITH AUTO STATION SEARCH FUNCTION ANALOG AND DIGITAL SIGNAL STRENGTH INDICATION F

TDA7701 General Description

TDA7701 is a single-chip FM Tuner specifically designed in mixed Bipolar-CMOS technology for low-voltage/low-power applications, where the minimization of external component count and PCB size and complexity are mandatory: typical examples are mobile phones and portable multimedia equipment. Housed.

TDA7701 Datasheet (82.86 KB)

Preview of TDA7701 PDF

Datasheet Details

Part number:

TDA7701

Manufacturer:

STMicroelectronics ↗

File Size:

82.86 KB

Description:

Battery operated fully integrated fm tuner.
