TDA7000 - FM radio circuit

Product Overview

📥 Download Datasheet

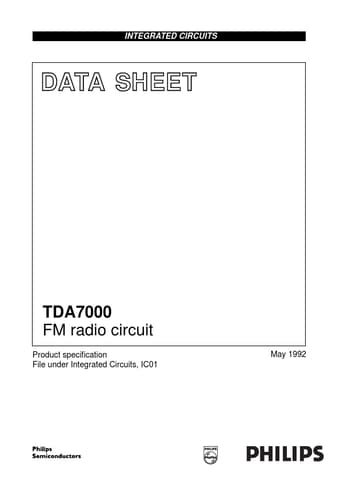

Datasheet preview – TDA7000

Datasheet Details

Part number TDA7000
Manufacturer NXP
File Size 227.01 KB
Description FM radio circuit
Datasheet download datasheet TDA7000 Datasheet
Additional preview pages of the TDA7000 datasheet.

Product details

Description

TDA7000 The TDA7000 is a monolithic integrated circuit for mono FM portable radios, where a minimum on peripheral components is important (small dimensions and low costs).The IC has an FLL (Frequency-Locked-Loop) system with an intermediate frequency of 70 kHz.The i.f.selectivity is obtained by active RC filters.The only function which needs alignment is the resonant circuit for the oscillator, thus selecting the reception frequency.Spurious reception is avoided by means of a mute circuit
