TL082B - General purpose JFET dual operation amplifiers

Product Overview

STMicroelectronics

Datasheet Details

Part number	TL082B
Manufacturer	STMicroelectronics
File Size	855.04 KB
Description	General purpose JFET dual operation amplifiers
Datasheet	TL082B Datasheet

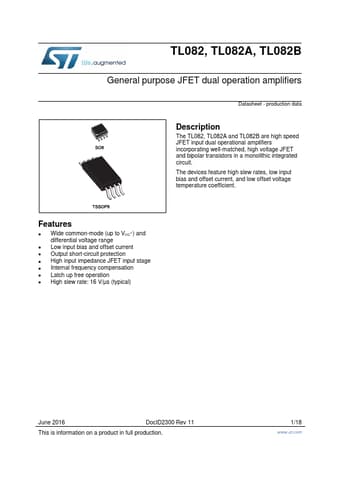

Additional preview pages of the TL082B datasheet.

Product details

Description

The TL082, TL082A and TL082B are high speed JFET input dual operational amplifiers incorporating well-matched, high voltage JFET and bipolar transistors in a monolithic integrated circuit.

Features

Wide common-mode (up to VCC+) and differential voltage range Low input bias and offset current Output short-circuit protection High input impedance JFET input stage Internal frequency compensation Latch up free operation High slew rate: 16 V/µs (typical) June 2016 DocID2300 Rev 11 This is information on a product in full production. 1/18 www. st. com Contents TL082, TL082A, TL082B Contents 1 Schematic diagram 3 2 Pin connections.
