TS636

DIFFERENTIAL VARIABLE GAIN AMPLIFIER FOR ADSL LINE INTERFACE

STMicroelectronics

TS636 Features

* a high input impedance and a low noise current. To minimize the overall noise figure, the source impedance must be less than 3kΩ. This value gives an equal contribution of voltage and current noises. The second stage is a gain/attenuation stage (+12dB to -9dB) featuring a low output impedance. This

TS636 General Description

This TS636 is particularly intended for applications such as preamplification in telecommunication systems using multiple carriers. It has been minly designed to fit with ADSL chip-sets such as ASCOT ADSL chip-set for CPE. The TS636 is a differential digitally controled variable gain amplifier featu.

TS636 Datasheet (121.63 KB)

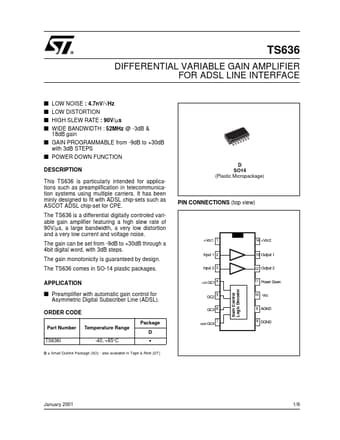

TS636 Datasheet Preview — Preview of TS636 PDF

Datasheet Details

Part number:

TS636

Manufacturer:

STMicroelectronics ↗

File Size:

121.63 KB

Description:

Differential variable gain amplifier for adsl line interface.
TS636 DIFFERENTIAL VARIABLE GAIN AMPLIFIER FOR ADSL LINE INTERFACE s s s s LOW NOISE : 4.7nV/√Hz LOW DISTORTION HIGH SLEW RATE : 90V/µs WIDE BANDWIDTH.
