TS63210K

On Resistance GaN Broadband RF Switch

TS63210K Features

* Ultra low 1.4Ω on resistance

* 0.40pF Coff

* RF peak voltage handling of 100V

* Each state can be controlled independently

* 4 independent state configuration

* No external DC blocking capacitors on RF lines

* Versatile 2.6~5.5V power supply

* 1.2~5.0V digital contr

TS63210K General Description

The TS63210K is a reflective open Single Pole Two Throw (SP2T) switch designed for antenna or filter tuning applications where high RF peak voltage handling is desired. TS63210K is suitable for frequency range from 1MHz to 1GHz. The TS63210K has a very low 1.4Ω on resistance and off capacitance of 0.

TS63210K Datasheet (538.24 KB)

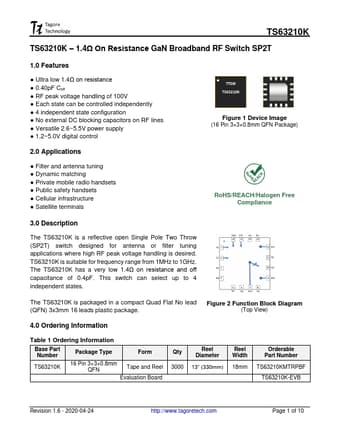

TS63210K Datasheet Preview — Preview of TS63210K PDF

Datasheet Details

Part number:

TS63210K

Manufacturer:

Tagore

File Size:

538.24 KB

Description:

On resistance gan broadband rf switch.
