TS64210L

ON Resistance GaN Broadband RF Switch SP2T

TS64210L Features

* Low 1.6Ω on resistance

* 0.40pF Coff

* RF peak voltage handling of 120V

* Each state can be controlled independently

* 4 independent state configurations

* No external DC blocking capacitors on RF lines

* Versatile 2.6~5.5V power supply

* 1.2~5.0V digital control F

TS64210L General Description

RoHS/REACH/Halogen Free Compliance The TS64210L is a reflective open Single Pole Two Throw (SP2T) switch designed for antenna or filter tuning applications where high RF peak voltage handling is desired. TS64210L is suitable for frequency range from 1MHz to 1GHz. The TS64210L has a low 1.6Ω ON res.

TS64210L Datasheet (588.76 KB)

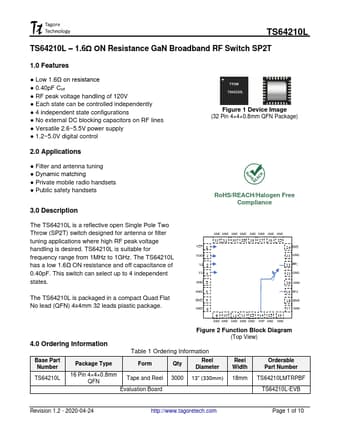

Preview of TS64210L PDF

Datasheet Details

Part number:

TS64210L

Manufacturer:

Tagore

File Size:

588.76 KB

Description:

On resistance gan broadband rf switch sp2t.
