TSU101 - operational amplifiers

Key Features

  • Submicro ampere current consumption: 580 nA typ per channel at 25 °C at VCC = 1.8 V.
  • Low supply voltage: 1.5 V - 5.5 V.
  • Unity gain stable.
  • Rail-to-rail input and output.
  • Gain bandwidth product: 8 kHz typ.
  • Low input bias current: 5 pA max at 25 °C.
  • High tolerance to ESD: 2 kV HBM.
  • Industrial temperature range: -40 °C to +85 °C Benefits.
  • 42 years of typical eq.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TSU10A60 FRED Nihon Inter Electronics
TSU10B60 FRED Nihon Inter Electronics
TSU16AK SXGA LCD Controller Mstar
TSU1N60M N-Channel MOSFET Truesemi
TSU05A60 FRD Nihon Inter Electronics

Other Datasheets by STMicroelectronics

Part Number Description
TSU102 operational amplifiers
TSU104 operational amplifiers
TSU111 5V CMOS operational amplifier
TSU111H 5V CMOS operational amplifier
TSU111IY CMOS operational amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

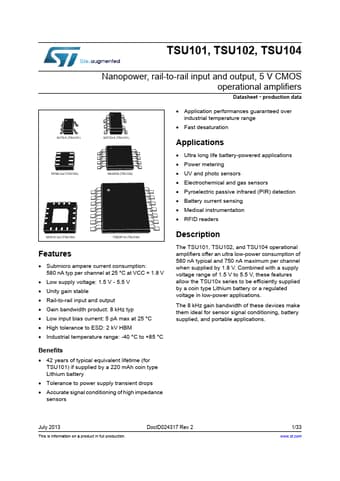

TSU101, TSU102, TSU104 Nanopower, rail-to-rail input and output, 5 V CMOS operational amplifiers Datasheet - production data 6& 768 627 768 ')1[ 768 0LQL62 768 • Application performances guaranteed over industrial temperature range • Fast desaturation Applications • Ultra long life battery-powered applications • Power metering • UV and photo sensors • Electrochemical and gas sensors • Pyroelectric passive infrared (PIR) detection • Battery current sensing • Medical instrumentation • RFID readers 4)1[ 768 76623 768 Features • Submicro ampere current consumption: 580 nA typ per channel at 25 °C at VCC = 1.8 V • Low supply voltage: 1.5 V - 5.
