TSZ152

zero-drift 5V op amp

STMicroelectronics

TSZ152 Features

* Very high accuracy and stability: offset voltage

* 7 µV max. at 25 °C

* 10 µV over full temperature range (-40 °C to 125 °C)

* Rail-to-rail input and output

* Low supply voltage: from 1.8 to 5.5 V

* Low power consumption: 210 µA at 5 V

* Gai

TSZ152 General Description

Package The TSZ151 and TSZ152 are single and dual operational amplifier featuring very low offset voltages with virtually zero-drift versus temperature changes. The TSZ151 and TSZ152 are single and dual offers rail-to-rail input and output, an excellent speed/power consumption ratio, and 1.6 MHz g.

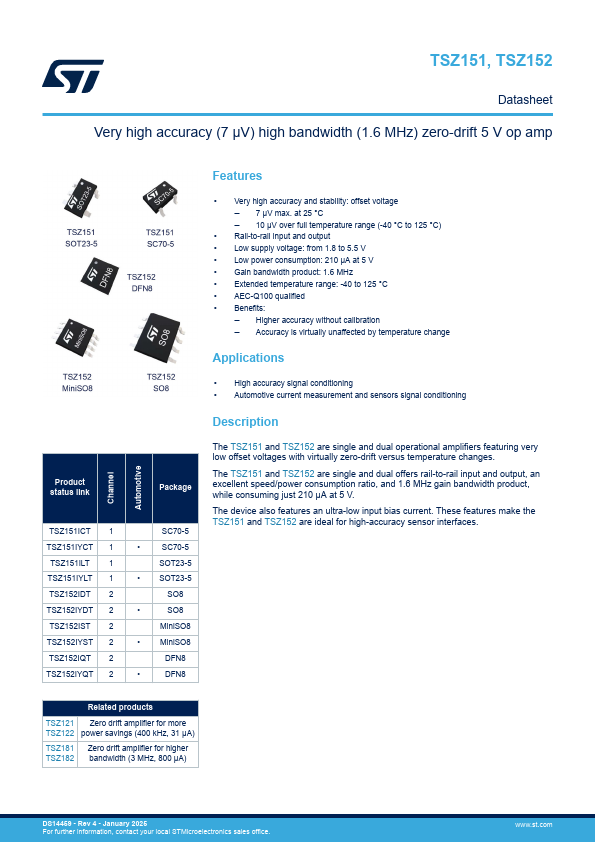

TSZ152 Datasheet (2.82 MB)

TSZ152 Datasheet Preview — Preview of TSZ152 PDF

Datasheet Details

Part number:

TSZ152

Manufacturer:

STMicroelectronics ↗

File Size:

2.82 MB

Description:

Zero-drift 5v op amp.
TSZ151, TSZ152 Datasheet Very high accuracy (7 µV) high bandwidth (1.6 MHz) zero-drift 5 V op amp Product status link TSZ151ICT 1 TSZ151IYCT 1 TSZ151.
