ULQ2001A - Seven Darlington array

Datasheet Summary

Description

The ULQ2001, ULQ2003 and ULQ2004 are high voltage, high current Darlington arrays each containing seven open collector Darlington pairs with common emitters.

Each channel rated at 500 mA and can withstand peak currents of 600 mA.

Features

  • Seven Darlington per package.
  • Extended temperature range: -40 to 105 °C.
  • Output current 500 mA per driver (600 mA peak).
  • Output voltage 50 V.
  • Automotive Grade product in SO16 package.
  • Integrated suppression diodes for inductive loads.
  • Outputs can be paralleled for higher current.
  • TTL/CMOS/PMOS/DTL compatible inputs.
  • Inputs pinned opposite outputs to simplify layout.

📥 Download Datasheet

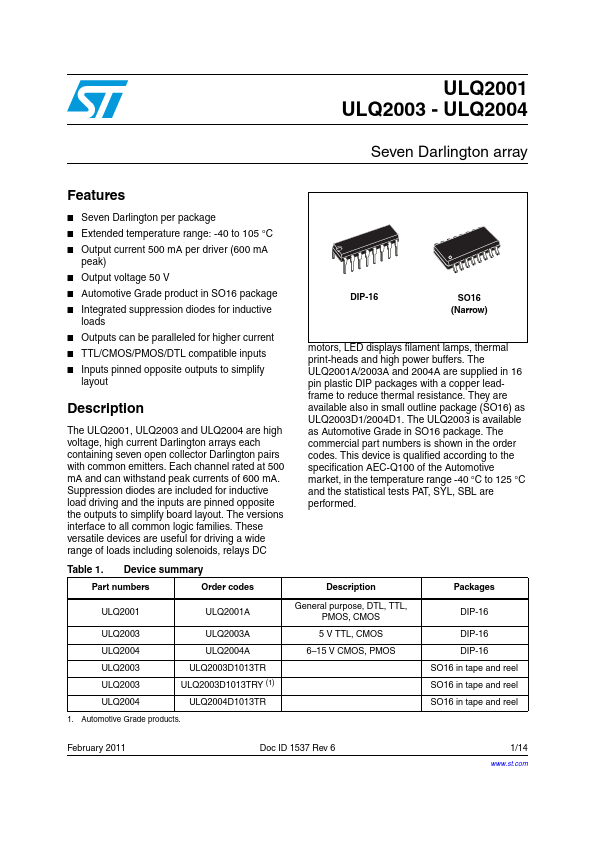

Datasheet preview – ULQ2001A

Datasheet Details

Part number ULQ2001A
Manufacturer STMicroelectronics
File Size 591.22 KB
Description Seven Darlington array
Datasheet download datasheet ULQ2001A Datasheet

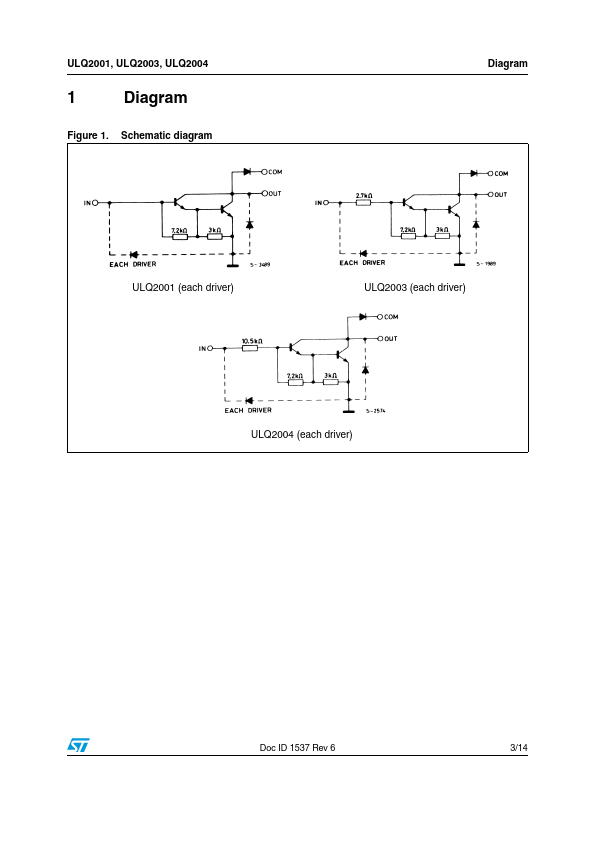

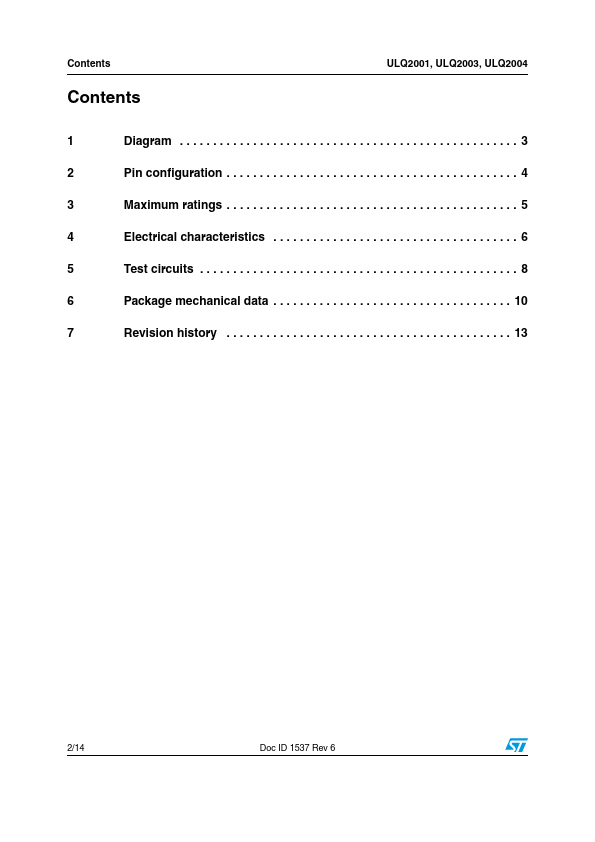

Additional preview pages of the ULQ2001A datasheet.

📁 Similar Datasheet

  • ULQ2003A - High-Current Darlington Transistor Arrays (Texas Instruments)
  • ULQ2003A - Darlington Transistor Arrays (ON Semiconductor)
  • ULQ2003A-Q1 - High-Voltage High-Current Darlington Transistor Arrays (Texas Instruments)
  • ULQ2003AG - Darlington Transistor Arrays (ON Semiconductor)
  • ULQ2004A - High-Current Darlington Transistor Arrays (Texas Instruments)
  • ULQ2004A-Q1 - High-Voltage High-Current Darlington Transistor Arrays (Texas Instruments)
  • ULQ2004AN - High-Current Darlington Transistor Arrays (Texas Instruments)
  • ULQ2004L - HIGH-VOLTAGE/ HIGH-CURRENT DARLINGTON ARRAYS (Allegro MicroSystems)
  • ULQ2436M - COUNTDOWN POWER TIMER (Allegro MicroSystems)
  • ULQ2453M - Lamp Monitors (ETC)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
ULQ2001 ULQ2003 - ULQ2004 Seven Darlington array Features ■ Seven Darlington per package ■ Extended temperature range: -40 to 105 °C ■ Output current 500 mA per driver (600 mA peak) ■ Output voltage 50 V ■ Automotive Grade product in SO16 package ■ Integrated suppression diodes for inductive loads ■ Outputs can be paralleled for higher current ■ TTL/CMOS/PMOS/DTL compatible inputs ■ Inputs pinned opposite outputs to simplify layout Description The ULQ2001, ULQ2003 and ULQ2004 are high voltage, high current Darlington arrays each containing seven open collector Darlington pairs with common emitters. Each channel rated at 500 mA and can withstand peak currents of 600 mA.
