ULQ2003A - High-Current Darlington Transistor Arrays

Datasheet Summary

Description

The ULx200xA devices are high-voltage, high-current Darlington transistor arrays.

Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.

The collector-current rating of a single Darlington pair is 500mA.

Features

  • 500mA-rated collector current (single output).
  • High-voltage outputs: 50V.
  • Output clamp diodes.
  • Inputs compatible with various types of logic.
  • Relay-driver.

📥 Download Datasheet

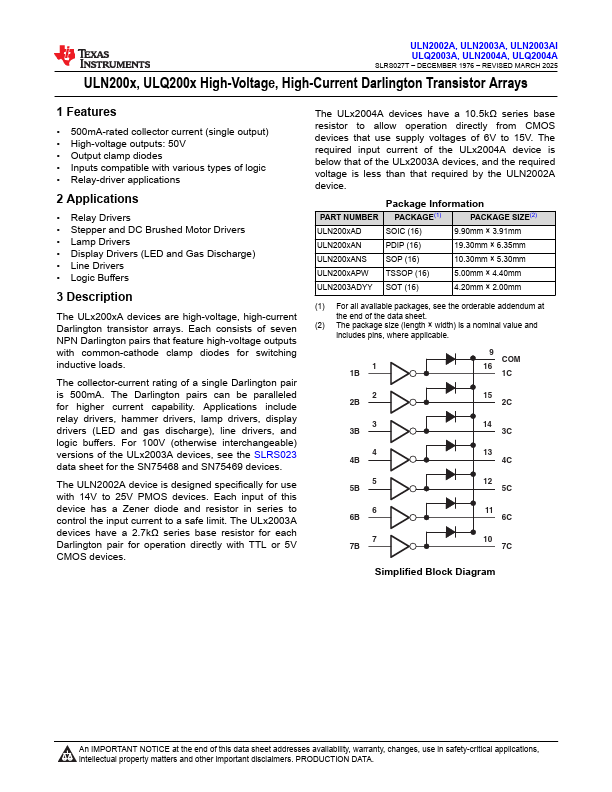

Datasheet preview – ULQ2003A

Datasheet Details

Part number ULQ2003A
Manufacturer Texas Instruments
File Size 1.66 MB
Description High-Current Darlington Transistor Arrays
Datasheet download datasheet ULQ2003A Datasheet

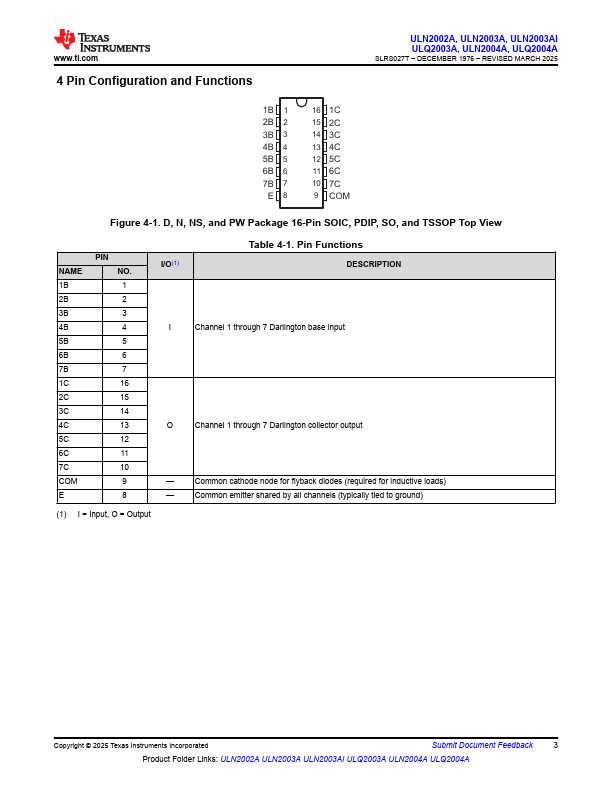

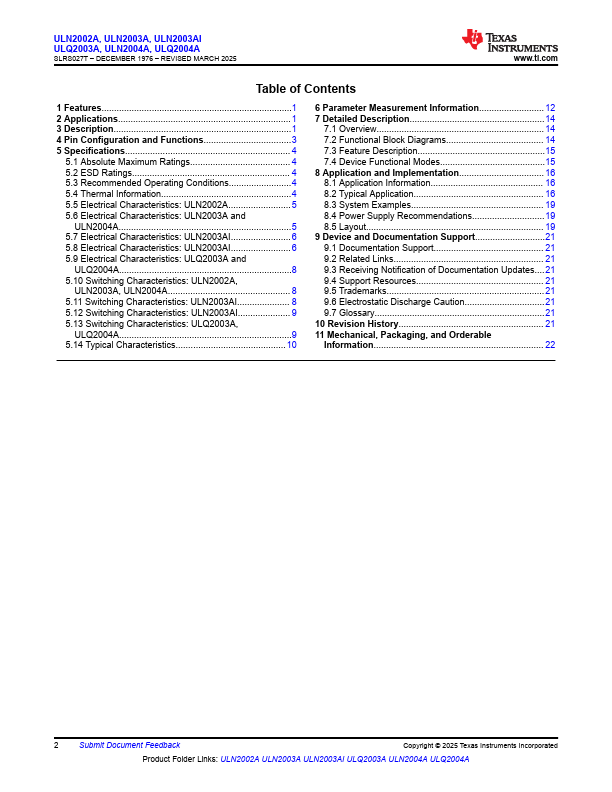

Additional preview pages of the ULQ2003A datasheet.

📁 Similar Datasheet

  • ULQ2003A - Seven Darlington array (STMicroelectronics)
  • ULQ2003A - Darlington Transistor Arrays (ON Semiconductor)
  • ULQ2003AG - Darlington Transistor Arrays (ON Semiconductor)
  • ULQ2003 - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
  • ULQ2001 - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
  • ULQ2001A - Seven Darlington array (STMicroelectronics)
  • ULQ2002A - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
  • ULQ2002A - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
  • ULQ2002D1 - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
  • ULQ2004 - SEVEN DARLINGTON ARRAYS (STMicroelectronics)
Other Datasheets by Texas Instruments
  • ULQ2003A-Q1 - High-Voltage High-Current Darlington Transistor Arrays
  • ULQ2004A - High-Current Darlington Transistor Arrays
  • ULQ2004A-Q1 - High-Voltage High-Current Darlington Transistor Arrays
  • ULQ2004AN - High-Current Darlington Transistor Arrays

Full PDF Text Transcription

Click to expand full text
ULN2002A, ULN2003A, ULN2003AI ULQ2003A, ULN2004A, ULQ2004A SLRS027T – DECEMBER 1976 – REVISED MARCH 2025 ULN200x, ULQ200x High-Voltage, High-Current Darlington Transistor Arrays 1 Features • 500mA-rated collector current (single output) • High-voltage outputs: 50V • Output clamp diodes • Inputs compatible with various types of logic • Relay-driver applications 2 Applications • Relay Drivers • Stepper and DC Brushed Motor Drivers • Lamp Drivers • Display Drivers (LED and Gas Discharge) • Line Drivers • Logic Buffers 3 Description The ULx200xA devices are high-voltage, high-current Darlington transistor arrays. Each consists of seven NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads.
