VIPER16 - Fixed frequency

Name: VIPER16
SKU: VIPER16-1409252

STMicroelectronics

The VIPER16 by STMicroelectronics is a Fixed frequency. Below is the official datasheet preview.

Datasheet Details

Part number	VIPER16
Manufacturer	STMicroelectronics
File Size	1.20 MB
Description	Fixed frequency
Datasheet	VIPER16-STMicroelectronics.pdf

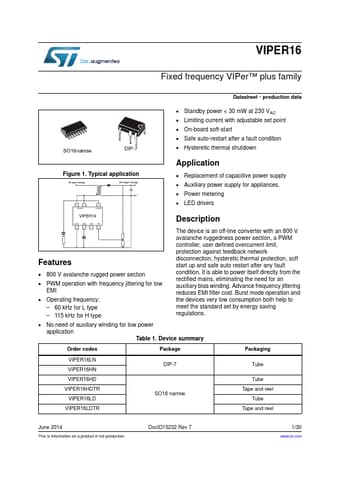

Additional preview pages of the VIPER16 datasheet.

800 V avalanche rugged power section.
PWM operation with frequency jittering for low EMI.
Operating frequency:.
60 kHz for L type.
115 kHz for H type The device is an off-line converter with an 800 V avalanche ruggedness power section, a PWM controller, user defined overcurrent limit, protection against feedback network disconnection, hysteretic thermal protection, soft start up and safe auto restart after any fault condition. It is able to power it.
