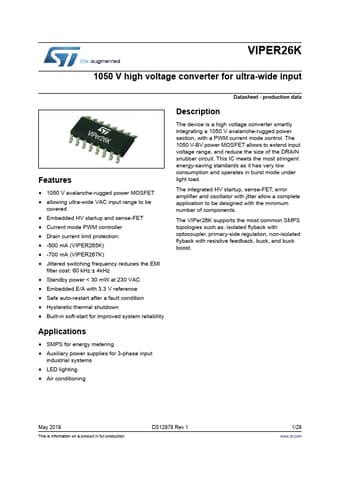

VIPER26K Datasheet, Voltage Converter, STMicroelectronics

1050v high voltage converter

STMicroelectronics

📥 Download PDF (1.01 MB)

PDF File Details

Part number:

VIPER26K

Manufacturer:

STMicroelectronics ↗

File Size:

1.01 MB

Download:

📄 Download the VIPER26K Datasheet PDF

Description:

1050v high voltage converter. The device is a high voltage converter smartly integrating a 1050 V avalanche-rugged power section, with a PWM current mode control. The 1050 V-BV power MOSFET allows to extend input voltage range, an

✔ VIPER26K Features

1050 V avalanche-rugged power MOSFET
allowing ultra-wide VAC input range to be covered
Embedded HV startup and sense-FET
Current mode PWM controller
Drain curre

✔ VIPER26K Application

SMPS for energy metering
Auxiliary power supplies for 3-phase input industrial systems
LED lighting
