VIPer20A SMPS PRIMARY I.C.

VIPer20A Description

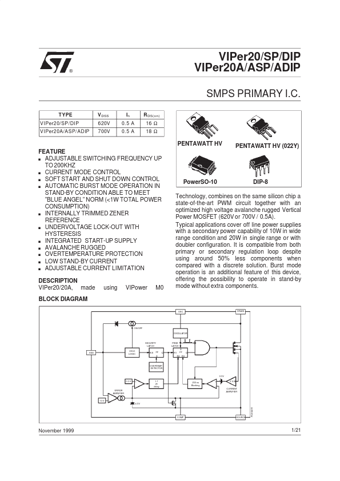

® VIPer20/SP/DIP VIPer20A/ASP/ADIP SMPS PRIMARY I.C.T YPE VIPer20/SP/DIP VIPer20A/ASP/ADIP V DSS 620V 700V In 0.5 A 0.5 A R DS(on) 16 Ω 18 Ω PE.
VIPer20/20A, made BLOCK DIAGRAM OSC PENTAWATT HV (022Y) 10 1 PowerSO-10 DIP-8 using VIPower M0 Technology, combines on the same silicon chip.

VIPer20A Applications

* cover off line power supplies with a secondary power capability of 10W in wide range condition and 20W in single range or with doubler configuration. It is compatible from both primary or secondary regulation loop despite using around 50% less components when compared with a discrete solution. Burst
