VN05HSP Datasheet - STMicroelectronics

HIGH SIDE SMART POWER SOLID STATE RELAY

VN05HSP General Description

The VN05HSP is a monolithic devices made using SGS-THOMSON Vertical Intelligent Power Technology, intended for driving resistive or inductive loads with one side grounded. Built-in thermal shut-down protects the chip from over temperature and short circuit. The input control is 5V logic level compat.

VN05HSP Datasheet (103.89 KB)

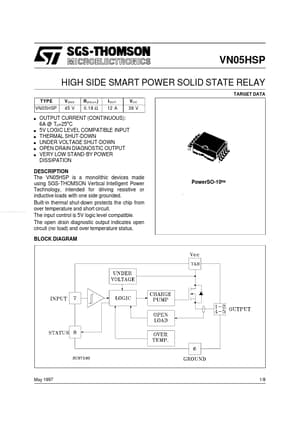

VN05HSP Datasheet Preview — Preview of VN05HSP PDF

Datasheet Details

Part number:

VN05HSP

Manufacturer:

STMicroelectronics ↗

File Size:

103.89 KB

Description:

High side smart power solid state relay.
VN05HSP HIGH SIDE SMART POWER SOLID STATE RELAY TARGET DATA TYPE VN05HSP s VDSS 45 V R DS(on ) 0.18 Ω I OUT 12 A VCC 36 V s s s s s OUTPUT CURRE.
