VN06SP
136.83 KB

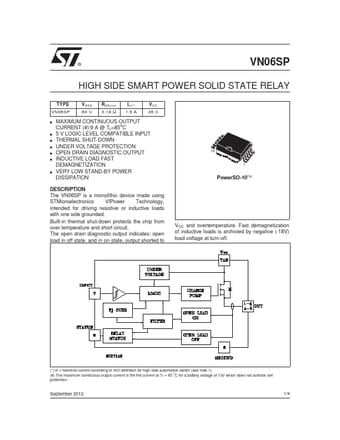

High side smart power solid state relay.
®
VN06SP
HIGH SIDE SMART POWER SOLID STATE RELAY
TYPE VN06SP
VDSS 60 V
RDS(on) 0.18 Ω
In(
*) 1.9 A
VCC 26 V
* MAXIMUM CONTINUOUS OUTPUT.
