HIGH SIDE SMART POWER SOLID STATE RELAY

VN30N General Description

The VN30N is a monolithic device made using SGS-THOMSON Vertical Intelligent Power Technology, intended for driving resistive or inductive loads with one side grounded. Built-in thermal shut-down protects the chip from over temperature and short circuit. The input control is 5V logic level compatibl.

VN30N Datasheet (172.82 KB)

VN30N Datasheet Preview — Preview of VN30N PDF

Datasheet Details

Part number:

VN30N

Manufacturer:

STMicroelectronics ↗

File Size:

172.82 KB

Description:

High side smart power solid state relay.

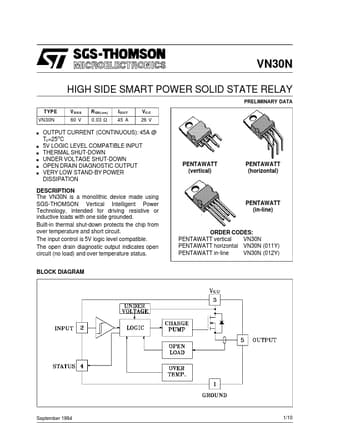

VN30N HIGH SIDE SMART POWER SOLID STATE RELAY TYPE VN30N VDSS 60 V R DS( on) 0.03 Ω IOUT 45 A VC C 26 V PRELIMINARY DATA s OUTPUT CURRENT (CON.
