VN3515L Datasheet - Supertex Inc

VN3515L, N-Channel Enhancement-Mode Vertical DMOS FETs

VN3515L VN4012L N-Channel Enhancement-Mode Vertical DMOS FETs Ordering Information BVDSS / BVDGS 350V 400V RDS(ON) (max) 15Ω 12Ω VGS(th) (max) 1.8V 1..

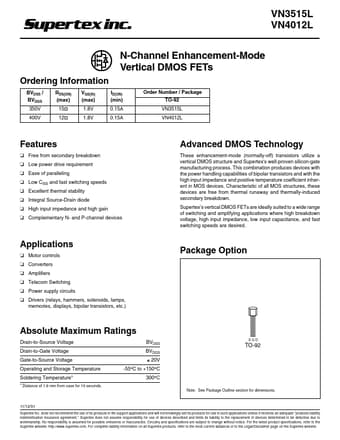

datasheet Preview Page 1 from Datasheet4u.com

VN3515L_SupertexInc.pdf

VN3515L Datasheet Preview — Preview of VN3515L PDF

Datasheet Details

Part number:

VN3515L

Manufacturer:

Supertex Inc

File Size:

441.95 KB

Description:

N-Channel Enhancement-Mode Vertical DMOS FETs

Features

* ❏ Free from secondary breakdown ❏ Low power drive requirement ❏ Ease of paralleling ❏ Low CISS and fast switching speeds ❏ Excellent thermal stability ❏ Integral Source-Drain diode ❏ High input impedance and high gain ❏ Complementary N- and P-channel devices Advanced DMOS Technology These enhanceme

Applications

* where high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds are desired. Applications ❏ Motor controls ❏ Converters ❏ Amplifiers ❏ Telecom Switching ❏ Power supply circuits ❏ Drivers (relays, hammers, solenoids, lamps, memories, displays, bipolar transistors
