VN9006AJ Datasheet - STMicroelectronics

Single channel high-side driver

VN9006AJ Features

* Max transient supply voltage Operating voltage range Typ. on-state resistance (per Ch) Current limitation (typ.) Standby current (max.) VCC VCC RON ILIMH ISTBY 36 V 4 to 28 V 6 mΩ 82 A 0.5 µA

* AEC-Q100 qualified

* Extreme low voltage operation for deep cold cranking applications

VN9006AJ General Description

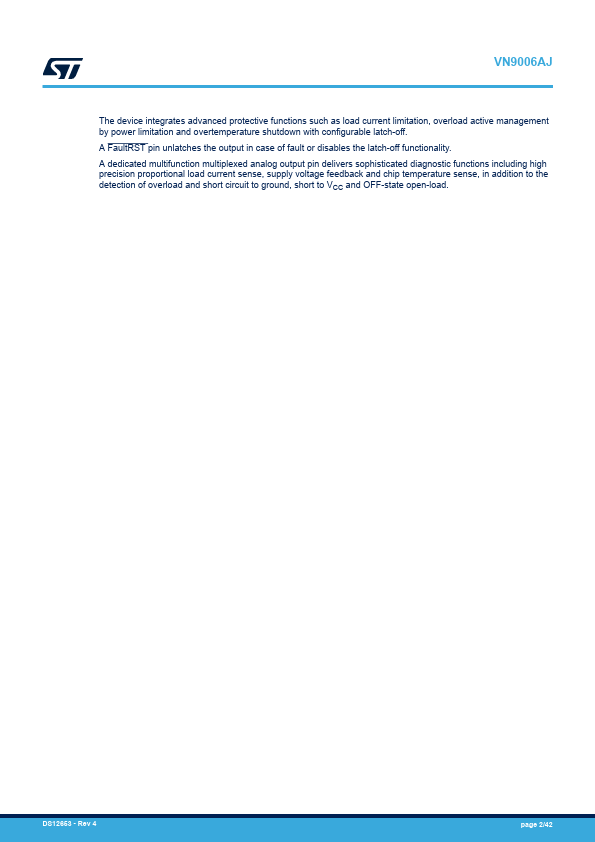

The device is a single channel high-side driver manufactured using ST proprietary VIPower M0-9 technology and housed in a PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics. The dev.

VN9006AJ Datasheet (1.50 MB)

VN9006AJ Datasheet Preview — Preview of VN9006AJ PDF

Datasheet Details

Part number:

VN9006AJ

Manufacturer:

STMicroelectronics ↗

File Size:

1.50 MB

Description:

Single channel high-side driver.
VN9006AJ Datasheet Single channel high-side driver with Current Sense analog feedback for automotive applications PowerSSO-16 Product status link VN.
