VN9008AJ Datasheet - STMicroelectronics

VN9008AJ Single channel high-side driver

The VN9008AJ is a single channel high-side driver manufactured using ST proprietary VIPower M0-9 technology and housed in a PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics. DS12.

VN9008AJ Features

* Max transient supply voltage Operating voltage range Typ. on-state resistance (per Ch) Current limitation (typ) Standby current (max) VCC VCC RON ILIMH ISTBY 36 V 4 to 28 V 8 mฮฉ 81.6 A 0.5 ยตA

* AEC-Q100 qualified

* Extreme low voltage operation for deep cold cranking applications

VN9008AJ Datasheet (1.16 MB)

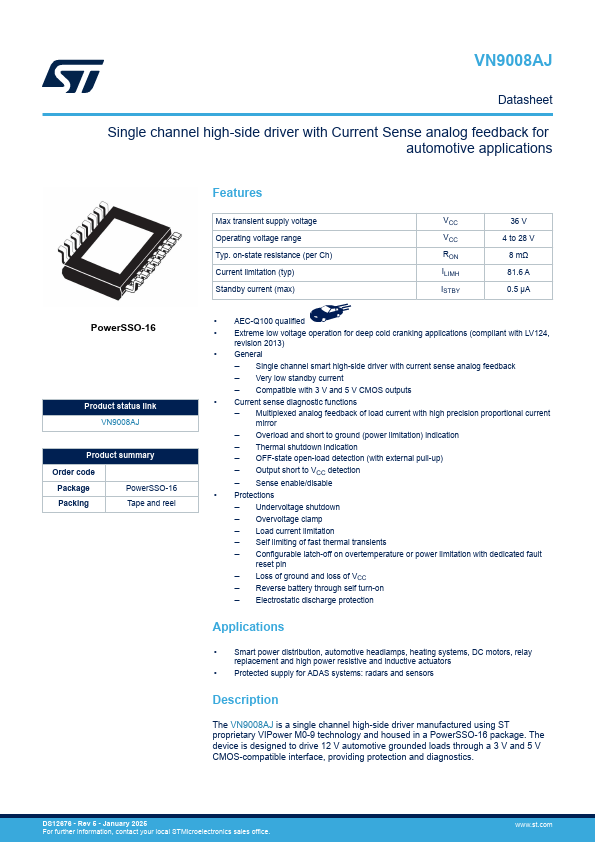

Preview of VN9008AJ PDF

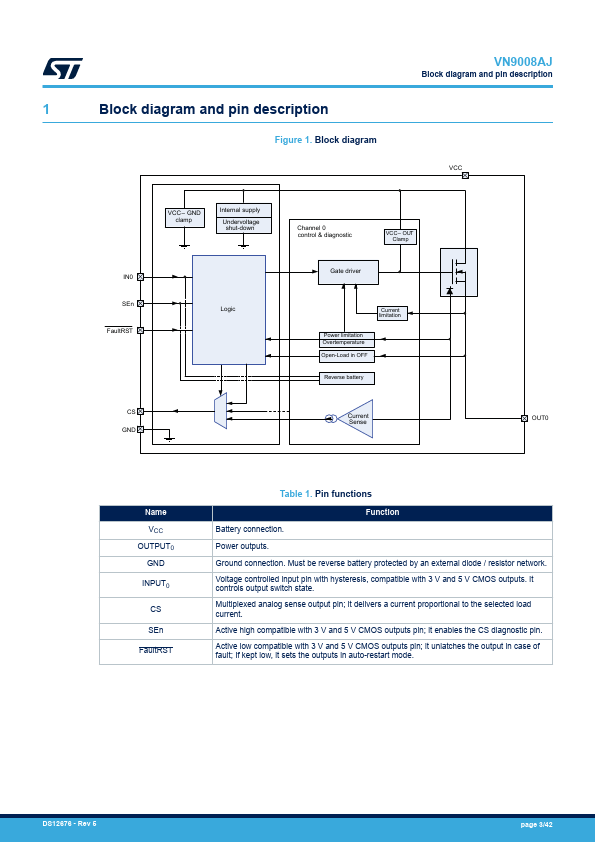

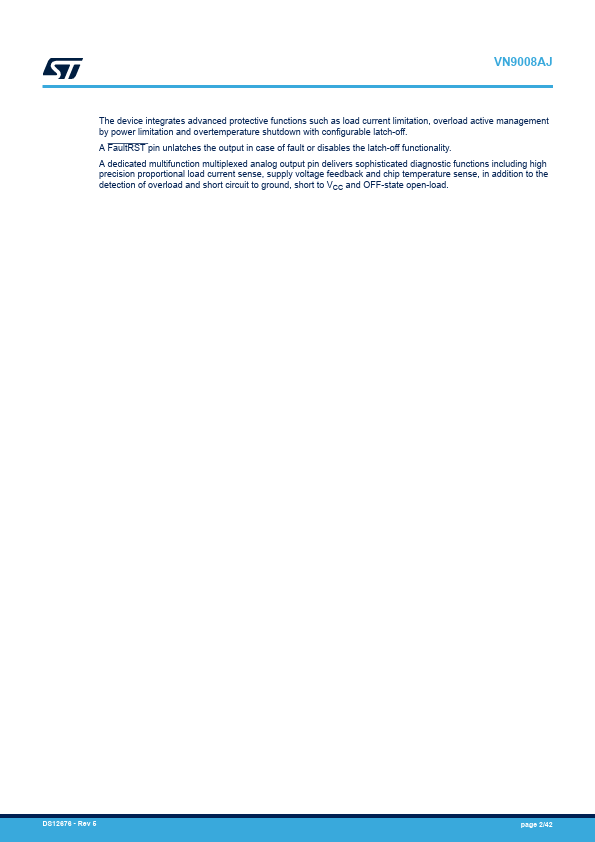

VN9008AJ Datasheet Preview Page 2 VN9008AJ Datasheet Preview Page 3

Datasheet Details
