VNF9D5F Datasheet, Driver, STMicroelectronics

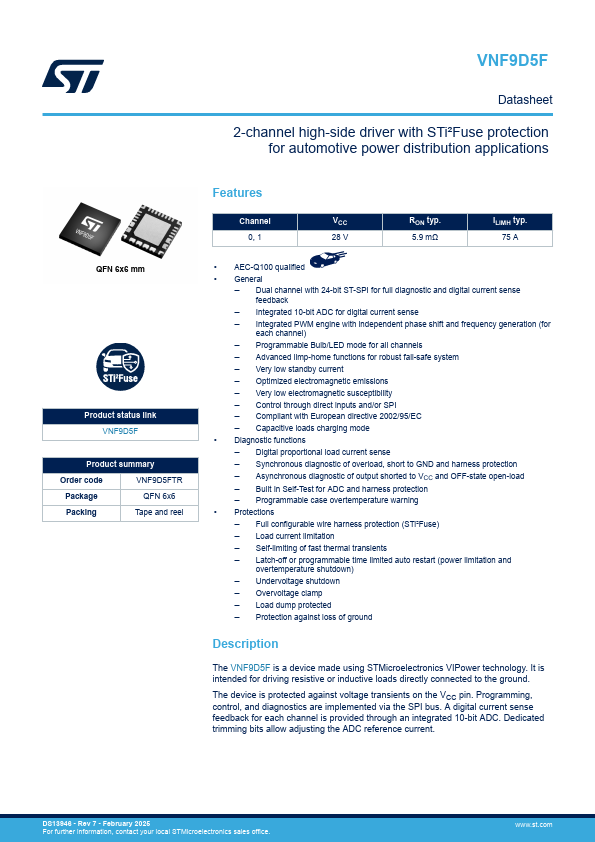

✔ VNF9D5F Features

Channel 0, 1 VCC 28 V RON typ. 5.9 mΩ ILIMH typ. 75 A
AEC-Q100 qualified
General
Dual channel with 24-bit ST-SPI for full diagnostic and digital current sense

✔ VNF9D5F Application

QFN 6x6 mm Product status link VNF9D5F Product summary Order code VNF9D5FTR Package QFN 6x6 Packing

PDF File Details

STMicroelectronics manufacturer logo

Part number:

VNF9D5F

Manufacturer:

STMicroelectronics ↗

File Size:

3.36MB

Download:

📄 Datasheet

Description:

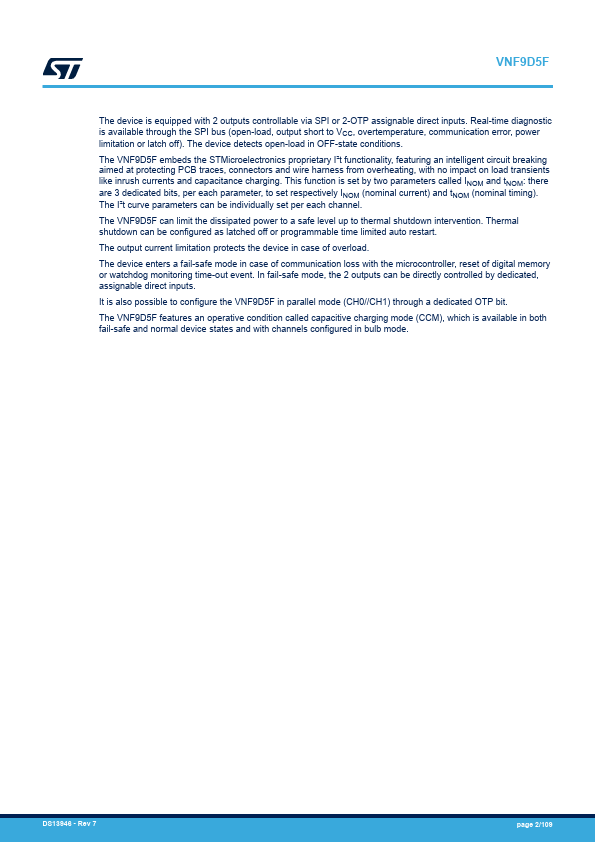

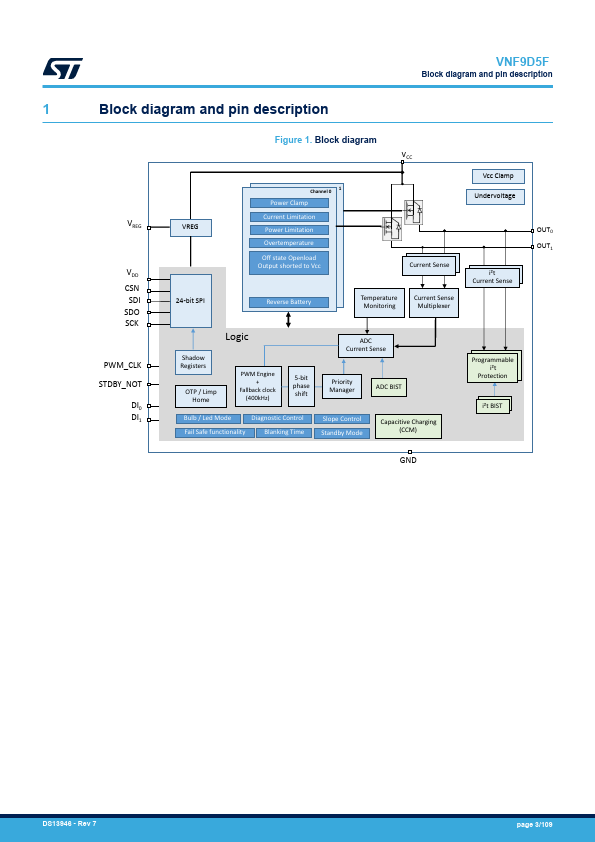

2-channel high-side driver. The VNF9D5F is a device made using STMicroelectronics VIPower technology. It is intended for driving resistive or inductive loads dir

📥 Download PDF (3.36MB)
