VNF9Q20F

4-channel high-side driver

STMicroelectronics

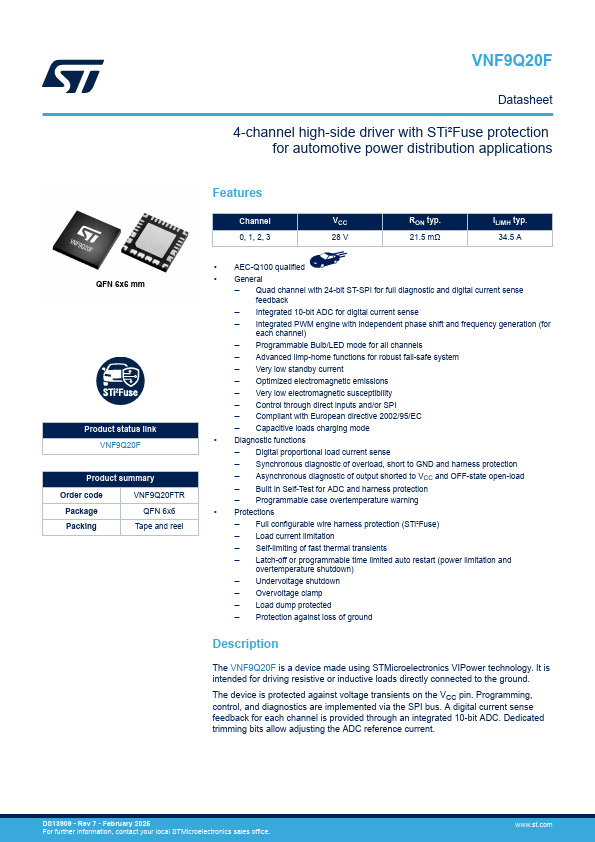

VNF9Q20F Features

* Channel 0, 1, 2, 3 VCC 28 V RON typ. 21.5 mΩ ILIMH typ. 34.5 A

* AEC-Q100 qualified

* General

* Quad channel with 24-bit ST-SPI for full diagnostic and digital current sense feedback

* Integrated 10-bit ADC for digital current sense

* Integrated PWM engin

VNF9Q20F General Description

The VNF9Q20F is a device made using STMicroelectronics VIPower technology. It is intended for driving resistive or inductive loads directly connected to the ground. DS13909 - Rev 6 - May 2024 For further information contact your local STMicroelectronics sales office. www.st.com VNF9Q20F The devic.

VNF9Q20F Datasheet (4.02 MB)

VNF9Q20F Datasheet Preview — Preview of VNF9Q20F PDF

Datasheet Details

Part number:

VNF9Q20F

Manufacturer:

STMicroelectronics ↗

File Size:

4.02 MB

Description:

4-channel high-side driver.
VNF9Q20F Datasheet 4-channel high-side driver with STi²Fuse protection for automotive power distribution applications QFN 6x6 mm Product status link.
