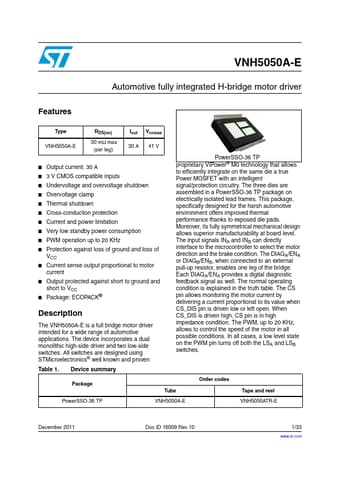

VNH5050A-E Datasheet, Driver, STMicroelectronics

VNH5050A-E Features

• Driver Type RDS(on) Iout Vccmax VNH5050A-E 50 mΩ max (per leg) 30 A 41 V
• Output current: 30 A
• 3 V CMOS compatible inputs
• Undervoltage and overvoltage shutd

PDF File Details

Part number:

VNH5050A-E

Manufacturer:

STMicroelectronics ↗

File Size:

731.32kb

Download:

📄 Datasheet

Description:

Automotive fully integrated h-bridge motor driver. The VNH5050A-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual mon

VNH5050A-E Application

• Applications The device incorporates a dual monolithic high-side driver and two low-side switches. All switches are designed using STMicroelectroni
