VNH5250AS-E Datasheet, Driver, STMicroelectronics

VNH5250AS-E Features

• Driver Type VNH5250AS-E RDS(on) 250 mΩ typ (per leg) Iout VCCmax 8 A 41 V
• Output current: 8 A
• 3 V CMOS-compatible inputs
• Undervoltage shutdown
• Overv

PDF File Details

Part number:

VNH5250AS-E

Manufacturer:

STMicroelectronics ↗

File Size:

180.57kb

Download:

📄 Datasheet

Description:

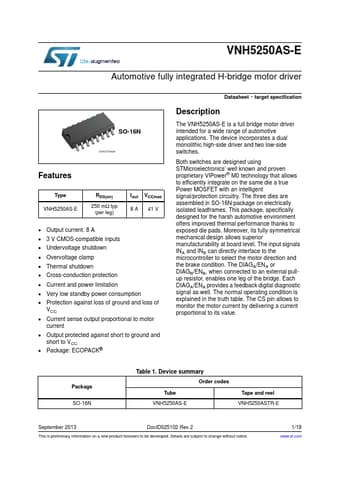

Automotive fully integrated h-bridge motor driver. The VNH5250AS-E is a full bridge motor driver intended for a wide range of automotive applications. The device incorporates a dual mo

VNH5250AS-E Application

• Applications The device incorporates a dual monolithic high-side driver and two low-side switches. Both switches are designed using STMicroelectron
