VNP5N07

OMNIFET: FULLY AUTOPROTECTED POWER MOSFET

VNP5N07 Features

* Type VND5N07 VND5N07-1 VND5N07FI VND5N07FM Vclamp RDS(on) 0.2 Ω Ilim Figure 1. Package 70 V 5A 3 1 DPAK TO-252 IPAK TO-251 3 2 1

* LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTI

VNP5N07 General Description

The VND5N07, VND5N07-1, VNP5N07FI and VNK5N07FM are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in.

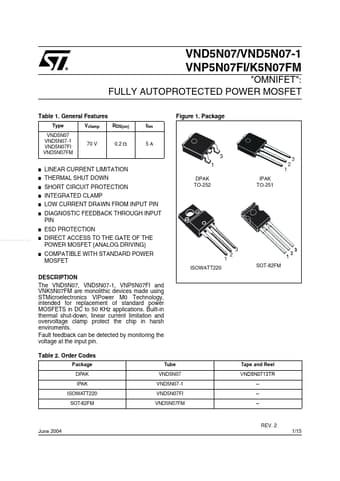

VNP5N07 Datasheet (397.31 KB)

Preview of VNP5N07 PDF

Datasheet Details

Part number:

VNP5N07

Manufacturer:

STMicroelectronics ↗

File Size:

397.31 KB

Description:

Omnifet: fully autoprotected power mosfet.
