VNP5N07FI, OMNIFET: FULLY AUTOPROTECTED POWER MOSFET

VND5N07/VND5N07-1 VNP5N07FI/K5N07FM "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET Table 1.General .
The VND5N07, VND5N07-1, VNP5N07FI and VNK5N07FM are monolithic devices made using STMicroelectronics VIPower M0 Technology, intended for replacement o.

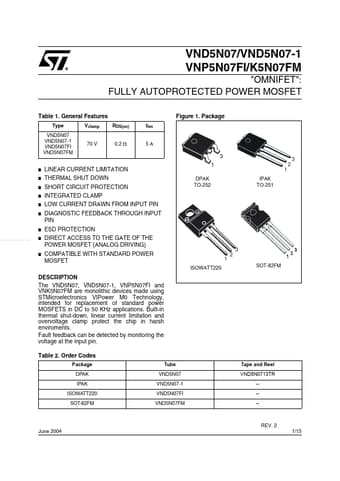

datasheet Preview Page 1 from Datasheet4u.com

VNP5N07FI_STMicroelectronics.pdf

VNP5N07FI Datasheet Preview — Preview of VNP5N07FI PDF

Datasheet Details

Part number:

VNP5N07FI

Manufacturer:

STMicroelectronics ↗

File Size:

397.31 KB

Description:

OMNIFET: FULLY AUTOPROTECTED POWER MOSFET

Features

* Type VND5N07 VND5N07-1 VND5N07FI VND5N07FM Vclamp RDS(on) 0.2 Ω Ilim Figure 1. Package 70 V 5A 3 1 DPAK TO-252 IPAK TO-251 3 2 1
* LINEAR CURRENT LIMITATION THERMAL SHUT DOWN SHORT CIRCUIT PROTECTION INTEGRATED CLAMP LOW CURRENT DRAWN FROM INPUT PIN DIAGNOSTI

Applications

* Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh enviroments. Fault feedback can be detected by monitoring the voltage at the input pin. Table 2. Order Codes Package DPAK IPAK ISOWATT220 SOT-82FM Tube VND5N07 VND5N07-1 VND5N07FI VND5N07FM Tape an
