VPS2535H

Double channel high-side driver

STMicroelectronics

VPS2535H Features

* Max transient supply voltage Operating voltage range Typ on-state resistance (per ch.) Current limitation (typ) Off-state supply current VCC VCC RON ILIM IS 58 V 8 to 36 V 35 mΩ 42 A 2 µA

* General

* Very low standby current

* 3.0 V CMOS compatible input

* Optimiz

VPS2535H General Description

The VPS2535H is a monolithic device made using STMicroelectronics® VIPower® technology, intended for driving resistive or inductive loads with one side connected to ground. Active VCC pin voltage clamp protects the device against low energy spikes. The device integrates an analog current sense which.

VPS2535H Datasheet (427.99 KB)

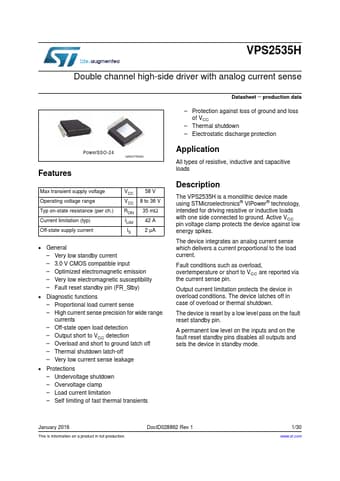

VPS2535H Datasheet Preview — Preview of VPS2535H PDF

Datasheet Details

Part number:

VPS2535H

Manufacturer:

STMicroelectronics ↗

File Size:

427.99 KB

Description:

Double channel high-side driver.
