Z0107MN Datasheet, Triacs, STMicroelectronics

Z0107MN Features

  • Triacs
  • On-state rms current, IT(RMS) 1 A
  • Repetitive peak off-state voltage, VDRM/VRRM 600 or 800 V
  • Triggering gate current, IGT (Q1) 3 to 25 mA Application

PDF File Details

Part number:

Z0107MN

Manufacturer:

STMicroelectronics ↗

File Size:

654.24kb

Download:

📄 Datasheet

Description:

Standard 1a triacs. The Z01 series is suitable for general purpose AC switching applications. These devices are typically used in applications such as h

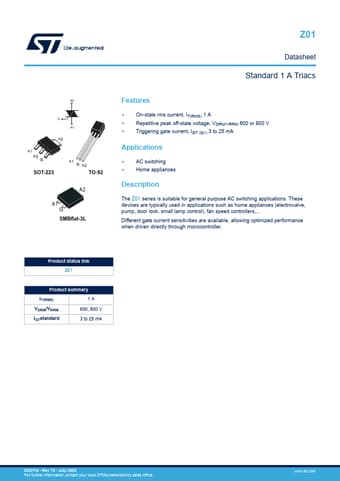

Datasheet Preview: Z0107MN 📥 Download PDF (654.24kb)
Page 2 of Z0107MN Page 3 of Z0107MN

Z0107MN Application

  • Applications
  • AC switching
  • Home appliances Description The Z01 series is suitable for general purpose AC switching application
