ERA15-10, ERA15-01 PLASTIC SILICON RECTIFIER DIODES

ERA15-10 Description

ERA15-01 * ERA15-10 PLASTIC SILICON RECTIFIER DIODES VOLTAGE RANGE: 100 - 1000 V CURRENT: 1.0 A .

ERA15-10 Features

* ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ERA15-10, ERA15-01. Please refer to the document for exact specifications by model.

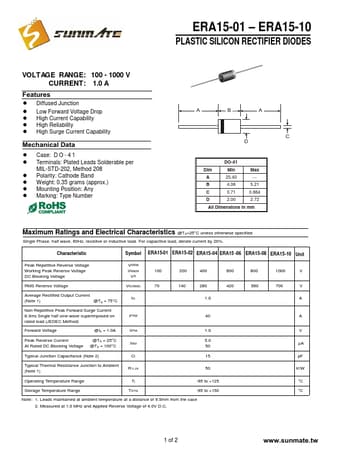

datasheet Preview Page 2

Datasheet Details

Part number
ERA15-10, ERA15-01
Manufacturer
SUNMATE
File Size
94.16 KB
Datasheet
ERA15-01-SUNMATE.pdf
Description
PLASTIC SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: ERA15-10, ERA15-01.
Please refer to the document for exact specifications by model.
