ERA15-06, ERA15-01 - 1A PLASTIC SILICON RECTIFIER

ERA15-06 Description

PLASTIC SILICON RECTIFIER .

ERA15-06 Features

* l Low cost l Diffused junction l Low leakage l Low forward voltage drop l High current capability l Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents l The plastic material carries U/L recognition 94V-0 ERA15-01 THRU ERA15-10 50V-1000V 1.0A MECHANICAL DATA l Case:JEDEC DO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ERA15-06, ERA15-01. Please refer to the document for exact specifications by model.

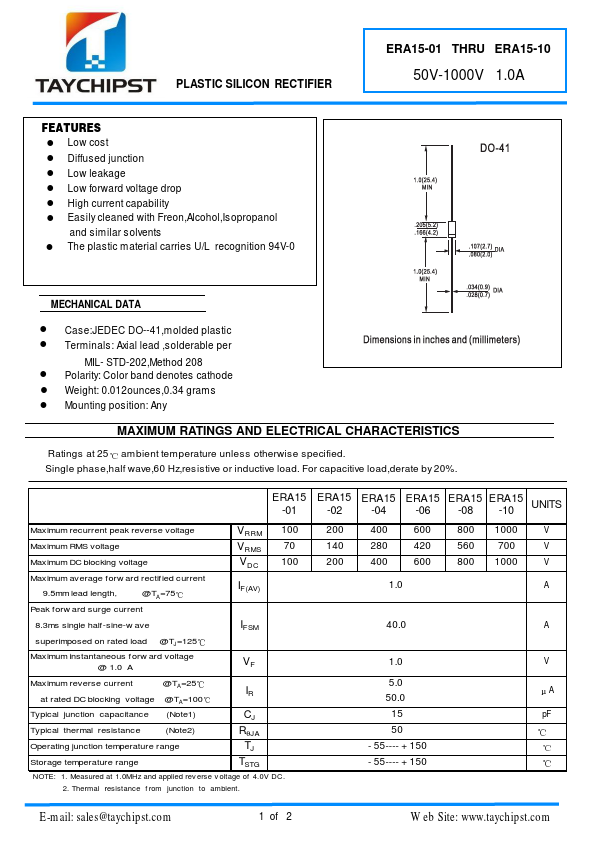

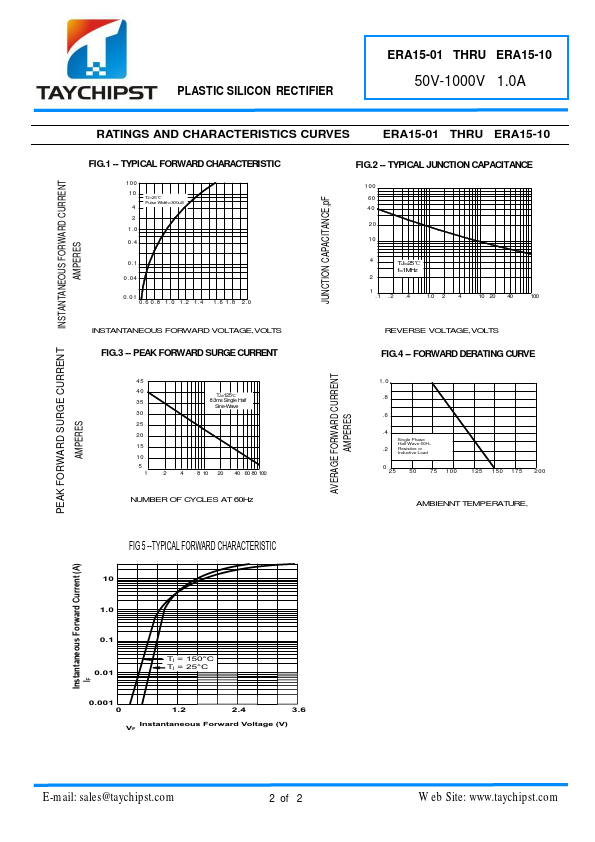

datasheet Preview Page 2

Datasheet Details

Part number
ERA15-06, ERA15-01
Manufacturer
TAYCHIPST
File Size
1.89 MB
Datasheet
ERA15-01-TAYCHIPST.pdf
Description
1A PLASTIC SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: ERA15-06, ERA15-01.
Please refer to the document for exact specifications by model.
