PRG3216 Datasheet - SUSUMU

PRG3216, High power thin film chip resistors

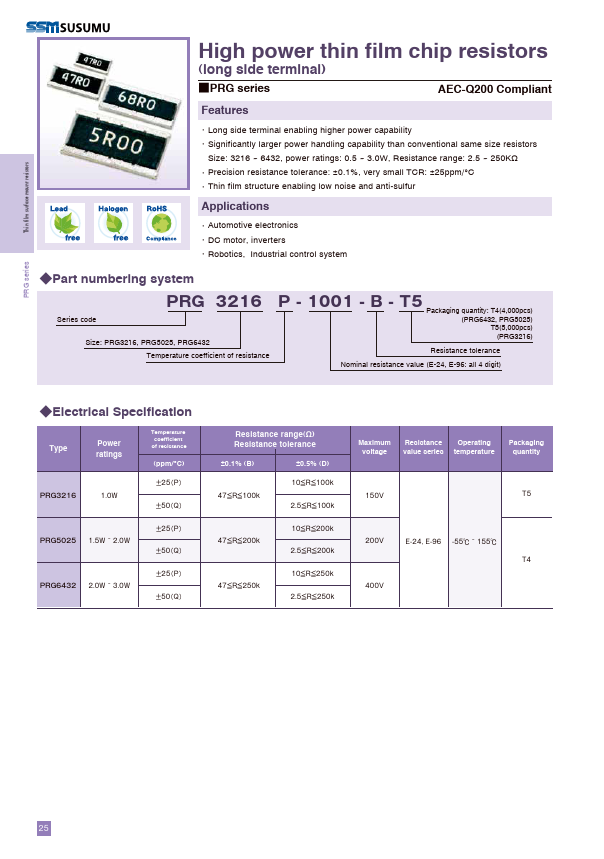

Thin film surface mount resistors PRG series High power thin film chip resistors (long side terminal) ˙PRG series AEC-Q200 Compliant .

datasheet Preview Page 1 from Datasheet4u.com

PRG3216-SUSUMU.pdf

PRG3216 Datasheet Preview — Preview of PRG3216 PDF

Datasheet Details

Part number:

PRG3216

Manufacturer:

SUSUMU

File Size:

471.08 KB

Description:

High power thin film chip resistors

Features

* ɾLong side terminal enabling higher power capability ɾSignificantly larger power handling capability than conventional same size resistors Size: 3216 ~ 6432, power ratings: 0.5 ~ 3.0W, Resistance range: 2.5 ~ 250KΩ ɾPrecision resistance tolerance: ±0.1%, very small TCR: ±25ppm/°C ɾThin film structu

Applications

* ɾAutomotive electronics ɾDC motor, inverters ɾRobotics, Industrial control system ˗Part numbering system 13(1#5 Packaging quantity: T4(4,000pcs) Series code (PRG6432, PRG5025) T5(5,000pcs) Size: PRG3216, PRG5025, PRG6432 (PRG3216) Temperature coefficient of resistanc
