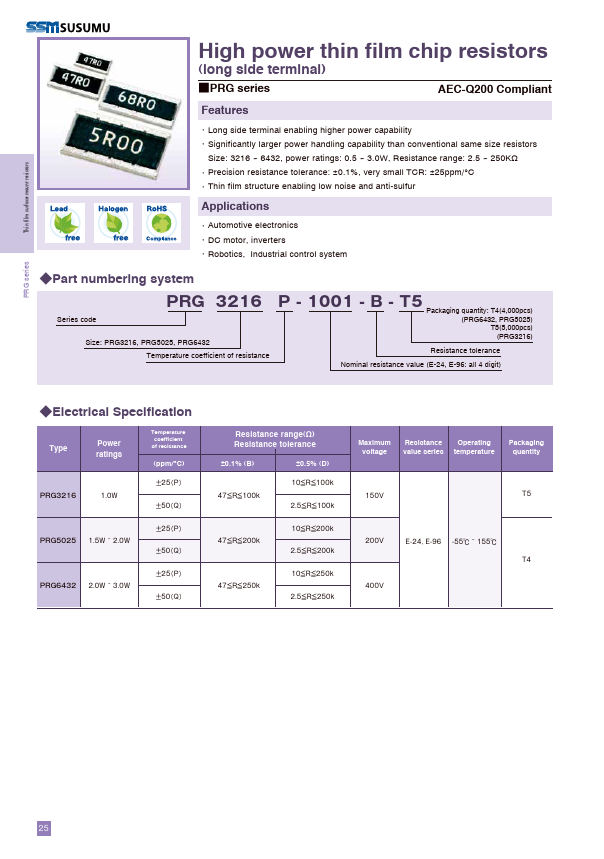

PRG6432, PRG3216 High power thin film chip resistors

Description

Thin film surface mount resistors PRG series High power thin film chip resistors (long side terminal) ˙PRG series AEC-Q200 Compliant .

📥 Download Datasheet

PRG6432 Datasheet Preview — This datasheet PDF includes multiple part numbers: PRG6432, PRG3216. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PRG6432, PRG3216
Manufacturer: SUSUMU
File Size: 471.08 KB
Datasheet: PRG3216-SUSUMU.pdf
Description: High power thin film chip resistors
Note: This datasheet PDF includes multiple part numbers: PRG6432, PRG3216.
Please refer to the document for exact specifications by model.

Features

* ɾLong side terminal enabling higher power capability ɾSignificantly larger power handling capability than conventional same size resistors Size: 3216 ~ 6432, power ratings: 0.5 ~ 3.0W, Resistance range: 2.5 ~ 250KΩ ɾPrecision resistance tolerance: ±0.1%, very small TCR: ±25ppm/°C ɾThin film structu

Applications

* ɾAutomotive electronics ɾDC motor, inverters ɾRobotics, Industrial control system ˗Part numbering system 13(1#5 Packaging quantity: T4(4,000pcs) Series code (PRG6432, PRG5025) T5(5,000pcs) Size: PRG3216, PRG5025, PRG6432 (PRG3216) Temperature coefficient of resistanc
