ESDBL0821Z-HAF, Low Clamping Voltage TVS Diode

ESDBL0821Z-HAF Low Clamping Voltage TVS Diode in a Thin 0201 Chip Scale Package 1 Low Clamping Voltage TVS Diode in a Thin 0201 Chip Scale Package 1.1.

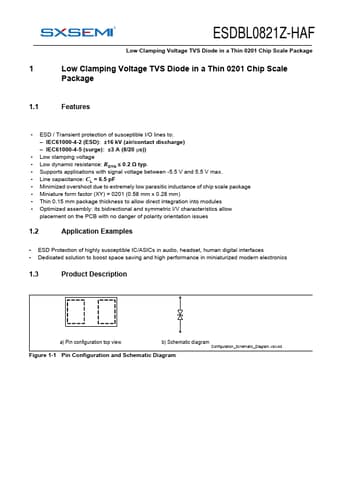

datasheet Preview Page 1 from Datasheet4u.com

ESDBL0821Z-HAF-SXSEMI.pdf

ESDBL0821Z-HAF Datasheet Preview — Preview of ESDBL0821Z-HAF PDF

Datasheet Details

Part number:

ESDBL0821Z-HAF

Manufacturer:

SXSEMI

File Size:

831.11 KB

Description:

Low Clamping Voltage TVS Diode

Features

* ESD / Transient protection of susceptible I/O lines to:
* IEC61000-4-2 (ESD): ±16 kV (air/contact discharge)
* IEC61000-4-5 (surge): ±3 A (8/20 μs))
* Low clamping voltage
* Low dynamic resistance: RDYN ≤ 0.2 Ω typ.

Applications

* with signal voltage between -5.5 V and 5.5 V max.
* Line capacitance: CL = 6.5 pF
* Minimized overshoot due to extremely low parasitic inductance of chip scale package
* Miniature form factor (XY) = 0201 (0.58 mm x 0.28 mm)
* Thin 0.15 mm package thickness to allow di
