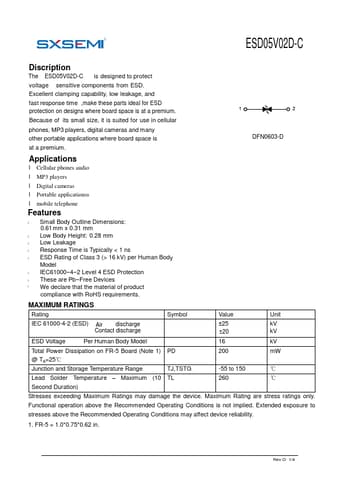

ESD05V02D-C Datasheet - SXSEMI

ESD05V02D-C Transient Voltage Suppressors

ESD05V02D-C Discription The ESD05V02D-C is designed to protect voltage sensitive components from ESD. Excellent clamping capability, low leakage, and fast response time ,make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, MP3 players, digital cameras and many other portable applications where board space is at a premium. 12 DFN0603-D Applications l Cellular phones audio l MP3 players l Digi.

ESD05V02D-C Features

* l Small Body Outline Dimensions: 0.61 mm x 0.31 mm l Low Body Height: 0.28 mm l Low Leakage l Response Time is Typically < 1 ns l ESD Rating of Class 3 (> 16 kV) per Human Body Model l IEC61000

* 4

* 2 Level 4 ESD Protection l These are Pb

* Free Devices l We declare that the mater

ESD05V02D-C Datasheet (736.98 KB)
