ESD05V14T-LC TVS Diode Array

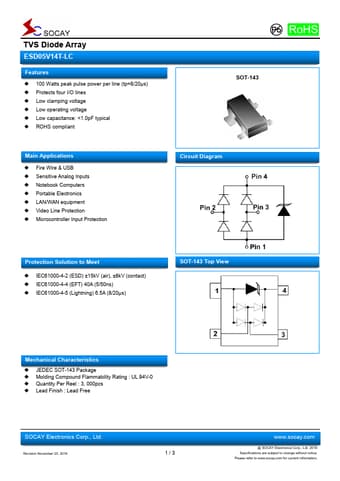

📥 Download Datasheet  Datasheet Preview Page 1

Description

TVS Diode Array ESD05V14T-LC .

📥 Download Datasheet

Preview of ESD05V14T-LC PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
ESD05V14T-LC
Manufacturer
SOCAY
File Size
960.26 KB
Datasheet
ESD05V14T-LC-SOCAY.pdf
Description
TVS Diode Array

Features

* 100 Watts peak pulse power per line (tp=8/20μs)
* Protects four I/O lines
* Low clamping voltage
* Low operating voltage
* Low capacitance:

Applications

* Fire Wire & USB
* Sensitive Analog Inputs
* Notebook Computers
* Portable Electronics
* LAN/WAN equipment
* Video Line Protection
* Microcontroller Input Protection SOT-143 Circuit Diagram Protection Solution to Meet
* IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact
