SPN3406 Datasheet - SYNC POWER

N-Channel MOSFET

SPN3406 Features

* 30V/5.4A,RDS(ON)=40mΩ@VGS=10V

* 30V/4.6A,RDS(ON)=50mΩ@VGS=4.5V

* Super high density cell design for extremely low RDS (ON)

* Exceptional on-resistance and maximum DC current capability

* SOT-23-3L package design PIN CONFIGURATION(SOT-23-3L) PART MARKING 2020/02/17 Ver.4 Pag

SPN3406 General Description

The SPN3406 is the N-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such a.

SPN3406 Datasheet (335.64 KB)

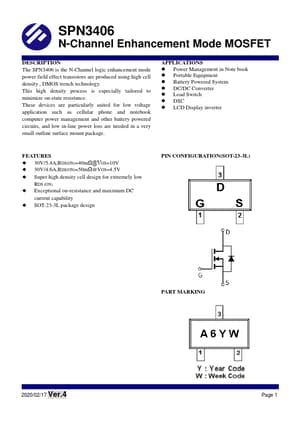

SPN3406 Datasheet Preview — Preview of SPN3406 PDF

Datasheet Details

Part number:

SPN3406

Manufacturer:

SYNC POWER

File Size:

335.64 KB

Description:

N-channel mosfet.
