SPN8620

Dual N-Channel Enhancement Mode MOSFET

SPN8620 Features

* 20V/4A, RDS(ON)=12mΩ@VGS=4.5V

* 20V/2A,RDS(ON) =14mΩ@VGS=2.5V

* 20V/1.5A,RDS(ON)=21mΩ@VGS=1.8V

* High density cell design for extremely low RDS (ON)

* Exceptional on-resistance and maximum DC current capability

* PPAK3x3-8L

* package design PIN CONFIGURATION (PPAK3x3-Du

SPN8620 General Description

The SPN8620 is a dual N-Channel logic enhancement mode power field effect transistor which is produced using super high cell density DMOS trench technology. The SPN8620 has been designed specifically to improve the overall efficiency of DC/DC converters using either synchronous or conventional switc.

SPN8620 Datasheet (280.66 KB)

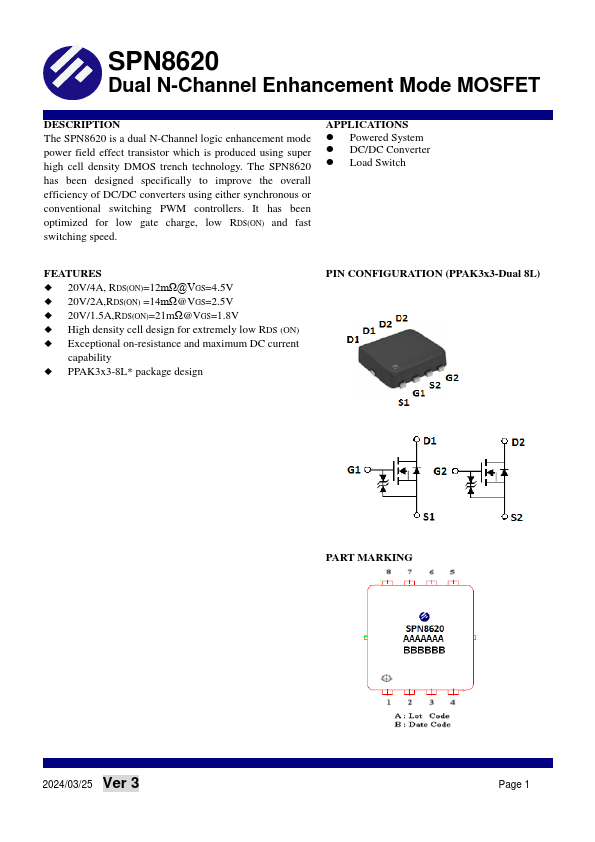

Preview of SPN8620 PDF

Datasheet Details

Part number:

SPN8620

Manufacturer:

SYNC POWER

File Size:

280.66 KB

Description:

Dual n-channel enhancement mode mosfet.

📁 Related Datasheet

SPN8622 Dual N-Channel Enhancement Mode MOSFET (SYNC POWER)

SPN8618 N-Channel MOSFET (SYNC POWER)

SPN8632 N-Channel MOSFET (SYNC POWER)

SPN8636 N-Channel MOSFET (SYNC POWER)

SPN8638 N-Channel MOSFET (SYNC POWER)

SPN8644 N-Channel MOSFET (SYNC POWER)

SPN8668 N-Channel MOSFET (SYNC POWER)

SPN8080 N-Channel MOSFET (SYNC POWER)

SPN80800R9NETN Coating Inductors (DARFON)

SPN8080100METL Coating Inductors (DARFON)

TAGS

SPN8620 Dual N-Channel Enhancement Mode MOSFET SYNC POWER

Image Gallery

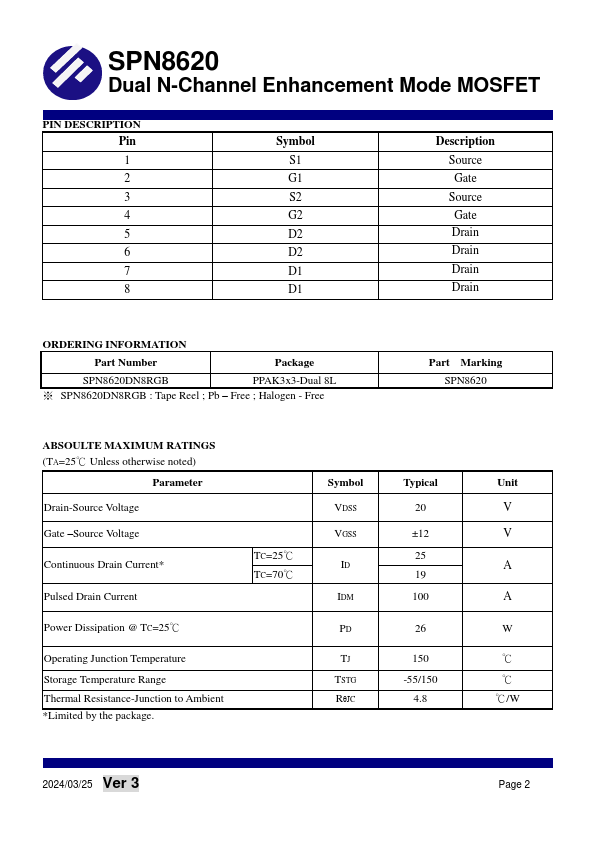

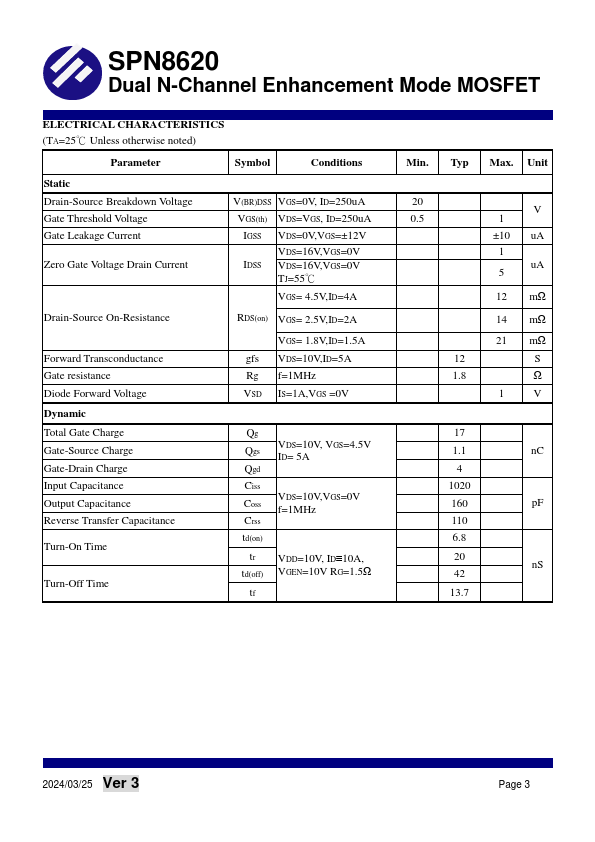

SPN8620 Datasheet Preview Page 2 SPN8620 Datasheet Preview Page 3
