SPP3413

The SPP3413 is P-Channel MOSFET designed by SYNC POWER.

Product Overview

SYNC POWER

📥 Download Datasheet

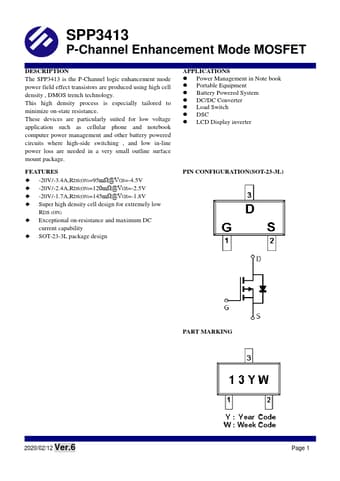

SPP3413 P-Channel MOSFET by SYNC POWER - Datasheet Preview — Datasheet preview – SPP3413

Datasheet Details

Part number	SPP3413
Manufacturer	SYNC POWER
File Size	335.42 KB
Description	P-Channel MOSFET
Datasheet	SPP3413-SYNCPOWER.pdf
Additional preview pages of the SPP3413 datasheet.

Product details

Description

The SPP3413 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

Features

-20V/-3.4A,RDS(ON)=95mΩ@VGS=-4.5V.
-20V/-2.4A,RDS(ON)=120mΩ@VGS=-2.5V.
-20V/-1.7A,RDS(ON)=145mΩ@VGS=-1.8V.
Super high density cell design for extremely low RDS (ON).
Exceptional on-resistance and maximum DC current capability.
SOT-23-3L package design.
