SC840 - High-precision current sensor

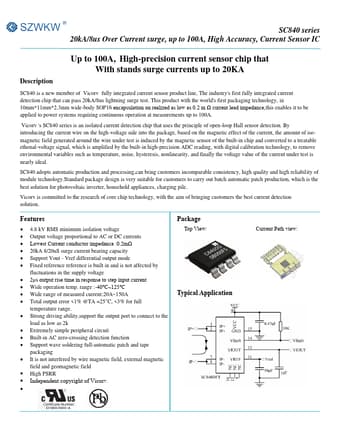

SC840 Datasheet Preview — Preview of SC840 PDF

Datasheet Details

Part number	SC840
Manufacturer	SZWKW
File Size	1.62 MB
Description	High-precision current sensor
Datasheet	SC840-SZWKW.pdf

SC840 Product details

Description

SC840 is a new member of Vicorv fully integrated current sensor product line, The industry's first fully integrated current detection chip that can pass 20kA/8us lightning surge test. 11mm 2.3mm wide-body SOP16 encapsulation on realized as low as 0.2 m Ω current lead impedance,this enables it to be applied to power systems requiring continuous operation at measurements up to 100A.

Features

4.8 kV RMS minimum isolation voltage.
Output voltage proportional to AC or DC currents.
Lowest Current conductor impedance :0.2mΩ.
20kA 8/20uS surge current bearing capacity.
Support Vout - Vref differential output mode.
Fixed reference reference is built in and is not affected by fluctuations in the supply voltage.
2μs output rise time in response to step input current.
Wide operation temp. range :-40℃~125℃.
Wide.
