SC813

small size and high precision current sensor

SC813 Features

* Isolated measurement, isolated withstand voltage Up to 3.0kv @50HZ,1min

* Can measure DC and AC current.

* Minimum current conductor impedance: 1mΩ

* Ultra-wide current detection range, suitable for detecting amperage current.

* Optional reference mode: 0.5Vcc 0.1Vcc

* Zero

SC813 General Description

Primary current input positive terminal Primary current output negative terminal Weak current GND insulated from primary current line NC, supporting GND connection, with an open drain pull-down tube inside NC, supporting GND connection, suspended inside Output voltage equal to primary current, in th.

SC813 Datasheet (1.20 MB)

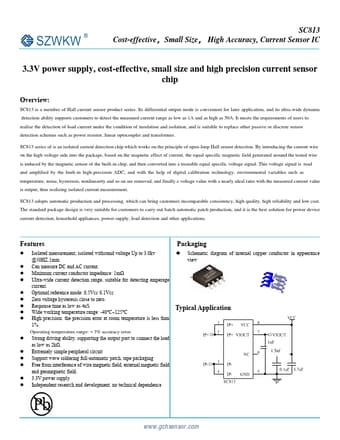

SC813 Datasheet Preview — Preview of SC813 PDF

Datasheet Details

Part number:

SC813

Manufacturer:

SZWKW

File Size:

1.20 MB

Description:

Small size and high precision current sensor.
SC813 Cost-effective，Small Size， High Accuracy, Current Sensor IC 3.3V power supply, cost-effective, small size and high precision current sensor chi.
