SC8100S - Dual N-Channel Enhancement Mode Field Effect Transistor

Datasheet Summary

Features

  • Super high dense cell design for low RDS(ON). Rugged and reliable. Wafer level CSP. ESD Protected. WLCSP TOP VIEW 1.61 0.03 BOTTOM VIEW 0.65 LAND.

📥 Download Datasheet

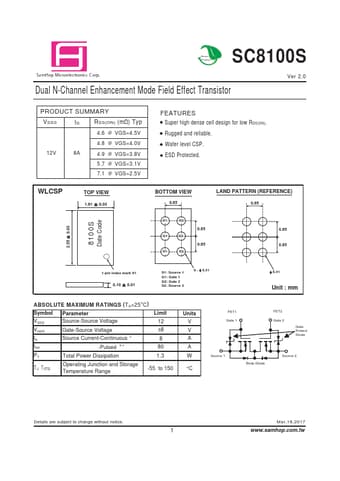

Datasheet preview – SC8100S

Datasheet Details

Part number SC8100S
Manufacturer SamHop
File Size 141.54 KB
Description Dual N-Channel Enhancement Mode Field Effect Transistor
Datasheet download datasheet SC8100S Datasheet
