S1850

Crystal Clock Oscillator

S1850 Features

* Sub-miniature, 1.1 mm high ceramic package ideal for SMT applications

* 10µA max standby mode on S1800 and S1803

* Available as 3.3V and 5V versions

* CMOS, HCMOS & TTL compatible

* Perfect for PC's; notebook, palmtop computers; portable applications; PCMCIA

S1850 General Description

The 5V S1800, S1850 and 3.3V S1803 are crystal-controlled, low-current oscillators providing precise rise and fall times to drive high speed CMOS and TTL loads. The sub-miniature, very low profile leadless ceramic packages have gold-plated contact pads, ideal for today's pick-and-place SMT environme.

S1850 Datasheet (101.34 KB)

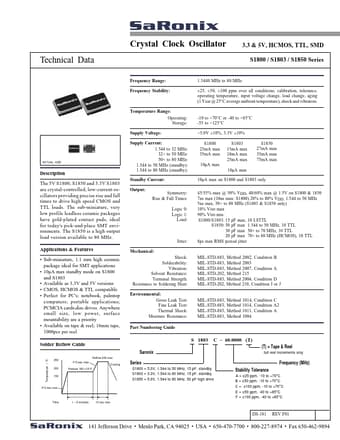

Preview of S1850 PDF

Datasheet Details

Part number:

S1850

Manufacturer:

SaRonix

File Size:

101.34 KB

Description:

Crystal clock oscillator.
SaRonix Crystal Clock Oscillator Technical Data Frequency Range: Frequency Stability: 1.5440 MHz to 80 MHz ±25, ±50, ±100 ppm over all conditions; cal.
