SC2583 - High Performance Current Mode PWM Controller

This page provides the datasheet information for the SC2583, a member of the SC2583-Safety High Performance Current Mode PWM Controller family.

Datasheet Summary

Description

SC2583 is a highly integrated current mode PWM controller optimized for high performance, low standby power and cost effective offline flyback converter applications.

At full loading, the IC operates in fixed frequency mode.

Features

  • Power-on Soft Startup.
  • External Programmable PWM switch Frequency.
  • Low VDD startup current (.

📥 Download Datasheet

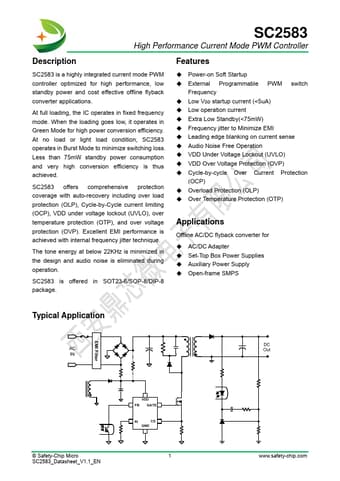

Datasheet preview – SC2583
