STD4530NL Datasheet (SamHop Microelectronics) - N-Channel E nhancement Mode Field Effect Transistor

STD4530NL, N-Channel E nhancement Mode Field Effect Transistor

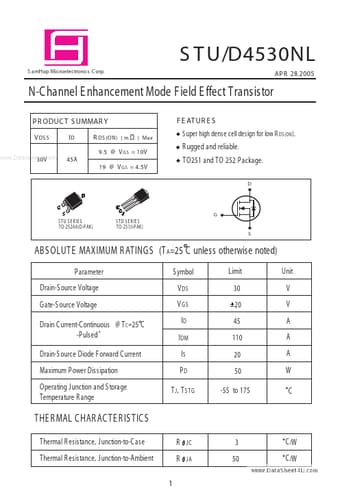

S T U/D4530NL S amHop Microelectronics C orp.

AP R 28 , 2005 N-C hannel E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S www.DataSheet4U.com 30V F E AT UR E S ( m W ) Max ID 45A R DS (ON) S uper high dense cell design for low R DS (ON ).

9.5 @ V G S = 10V 19 @ V G S = 4.5V R ugged and reliable.

TO251 and TO 252 P ackage.

D D G S G D S G S TU S E R IE S TO-252AA(D-P AK) S TD S E R IE S TO-251(l-P AK) S ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted
