STK103 - N-Channel MOSFET

Datasheet Summary

Features

  • Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. D D G S SOT-89 D G S.

📥 Download Datasheet

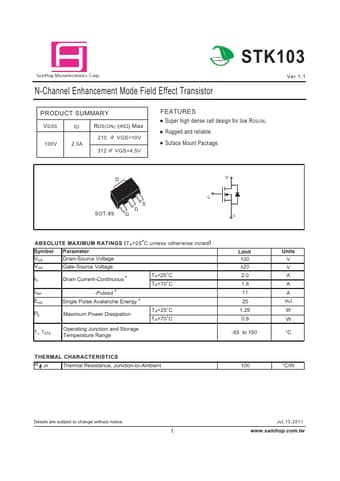

Datasheet preview – STK103

Datasheet Details

Part number STK103
Manufacturer SamHop Microelectronics
File Size 96.00 KB
Description N-Channel MOSFET
